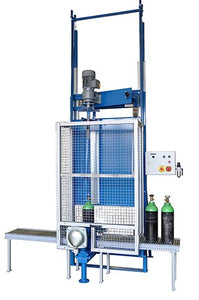

Valving machine for small gas cylinders - M103-810-000
Trusted machine for efficient valve handling. This machine is designed to remove and insert valves in gas cylinders. Built for safety, precision and reliability. This model (103-810-000) is customized to handle small gas cylinders in roller conveyor systems.
Key Features:
- Based on the original Valving Machine M103-000: Well-proven technology used in the gas industry for many years.
- Special design: Designed for small cylinders handled with roller conveyors.
- Roller conveyor compatibility: Seamless integration with roller conveyor systems (not included in the supply).
- Self-centering clamping device: Pneumatic clamping system with two air cylinders for secure and accurate positioning.
- Free-standing design: Rigid free-standing support (M103-116-000).
- High accuracy: Ensures precise valve handling for optimal performance.
- Flexibility: The same machine can be used for both valving and de-valving.
- Fast and reliable: Installs or removes a valve in approximately 14 seconds.
- High repeatability: The preset torque value remains constant.
- Advanced operation: Powered by an electric gear motor and pneumatic clamp unit.
- Low maintenance: Engineered for durability and minimal upkeep.
- Optional fittings: A wide range of optional fittings are available.
- Enhanced safety: Equipped with a sliding mesh guard and safety interlock.
Specifications:
- Length of shortest cylinder: Customized to meet specific needs.
- Length of longest cylinder: Customized to meet specific needs.
- Cylinder diameter capacity: Fully customizable.
- Valve wrench model: M131-729 with spanner jaw gap tailored to your requirements.
- Machine height: Customized.
- Torque setting: Up to 500 Nm at 50 Hz.
Spare parts
Rubber diaphragm - M125-950-100
Optional fittings
Support for valving machine - M103-116-000
Support for valving machine - mobile - M103-116-484
Machine guarding valving machine - M103-124-000
Additional protection kit - polycarbonate - M103-589-000
Additional protection kit - M103-095-106
Device for cylinders with fixed valve guard – M103-650-112
Support for short cylinders – M103-827-000
Lifting device for small cylinders - M103-122-001
Machine guarding valving machine - M103-124-000
