External cleaning & painting machine for gas cylinders – M148-152-001

Product Description

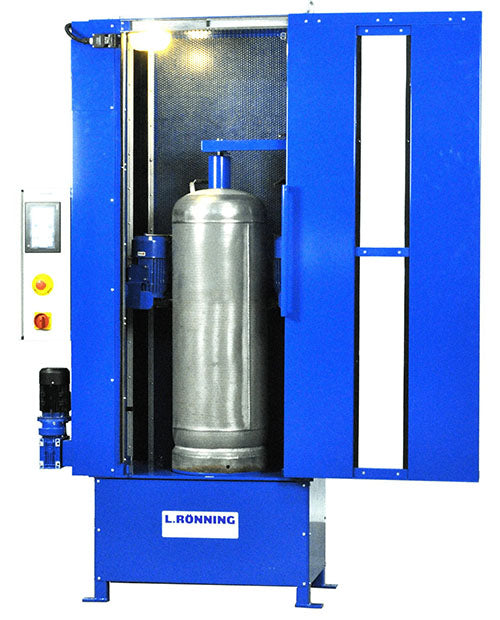

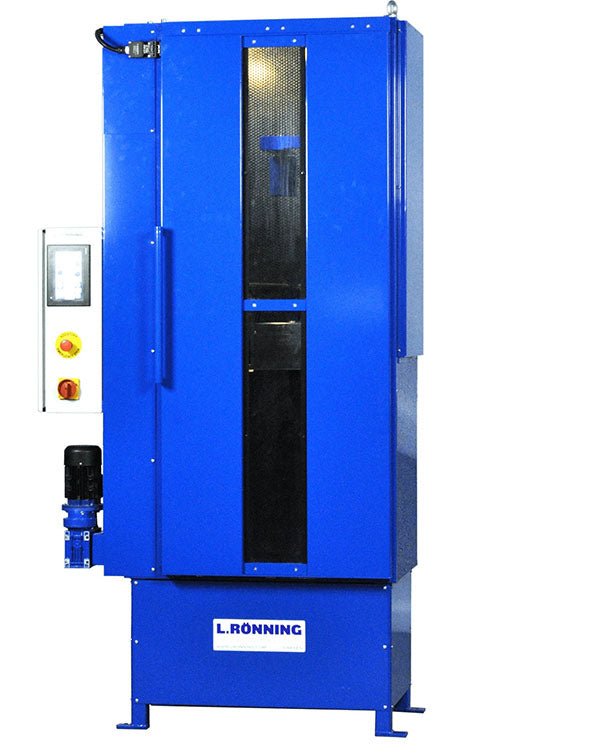

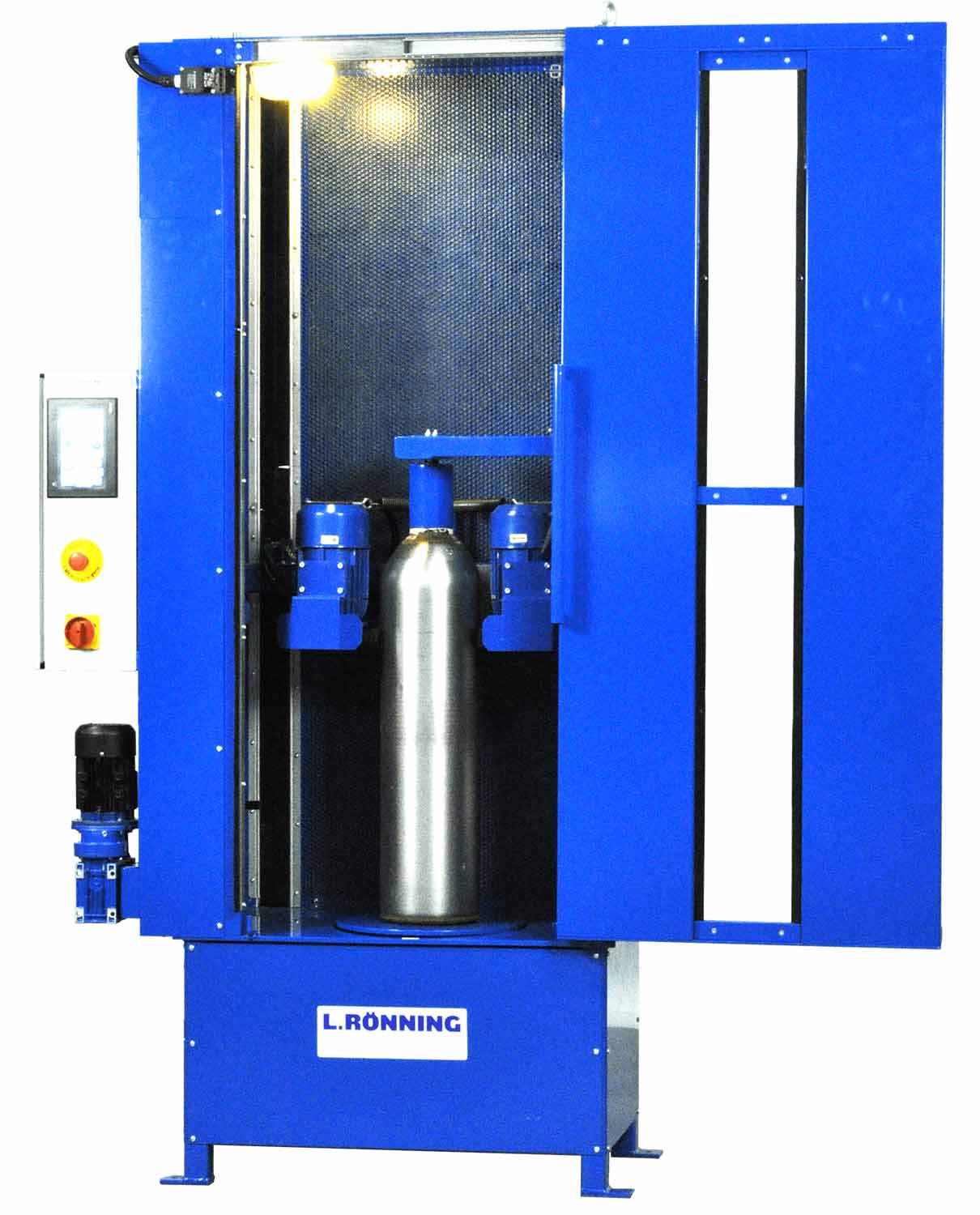

EXTERNAL CLEANING & PAINTING MACHINE FOR SMALL GAS CYLINDERS

The cylinder is cleaned by means of 2 rotating steel wire brushes.

The cleaning cycle is fully automatic and will also clean the shoulder on a seamless
cylinder.

After the cleaning cycle it is possible to paint the cylinder.

- Any pit is NOT required. Height from the floor to the rotating disc is 500 mm.
- The machine is designed to remove rust, dirt and loose paint
- Controlled by frequency converter and touch panel
- Brush arm travel speed is adjustable
- Sliding door
- Cabinet, walls and door of sound absorbing material
- To be connected to dust extraction unit such as M148-165

• Cylinder height: Up to 1350 mm.
• Cylinder diameter: Up to 380 mm.


Spare parts

Circular brush - Steel wire - Standard - M148-154-000

Circular brush - Nylon with abrasive – M148-154-155

Optional fittings

Filter box - M148-165
