Lifting device for small cylinders - M103-122-001

LIFTING DEVICE FOR SMALL CYLINDERS.

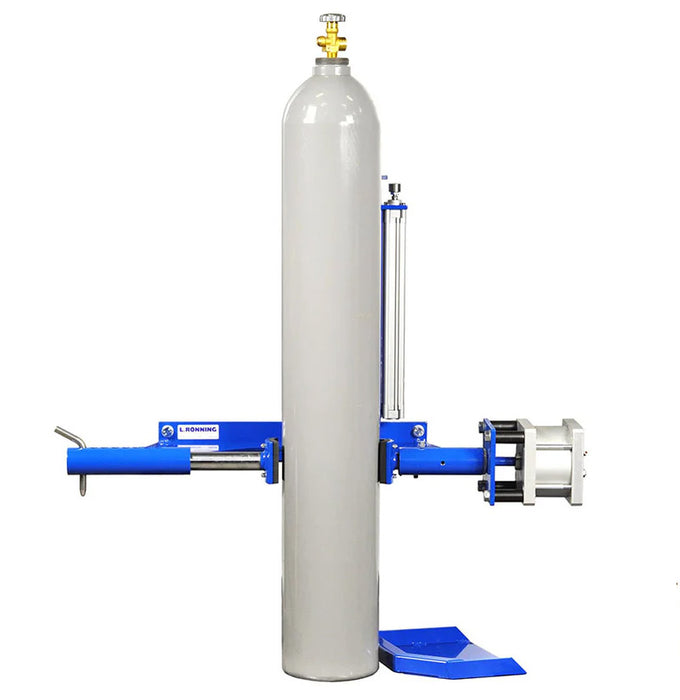

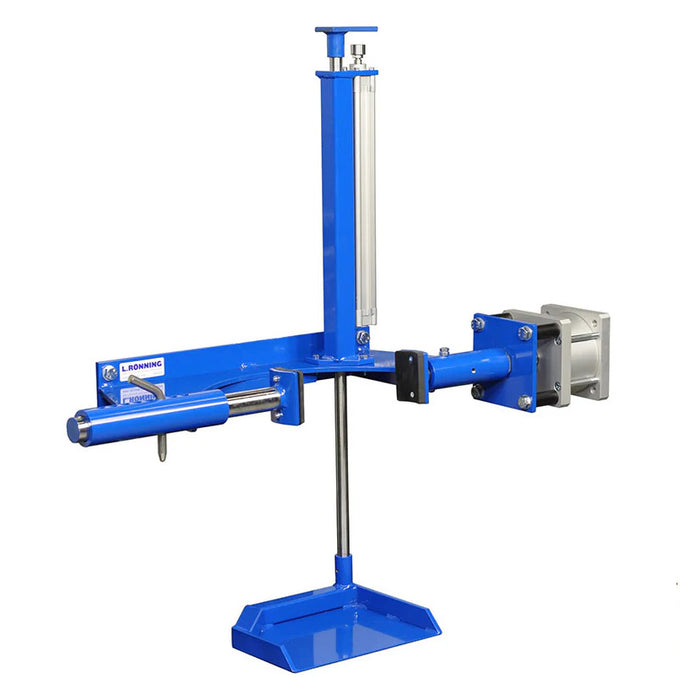

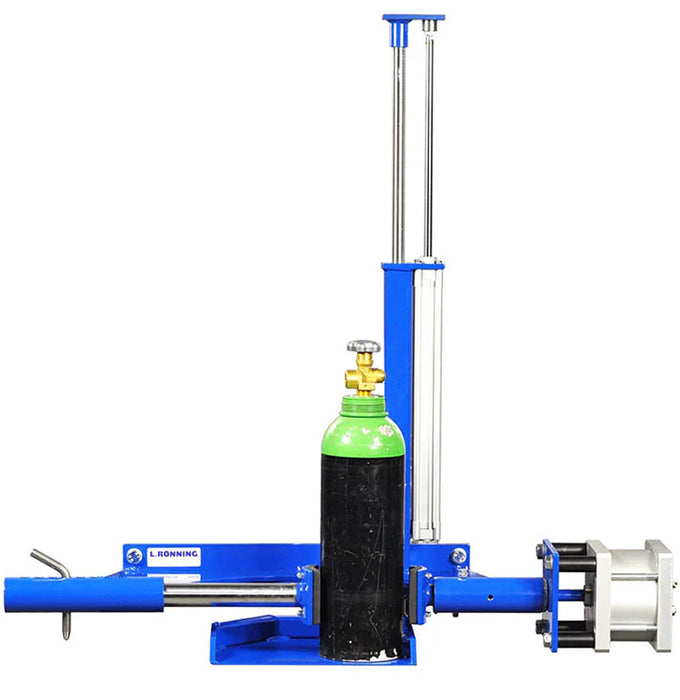

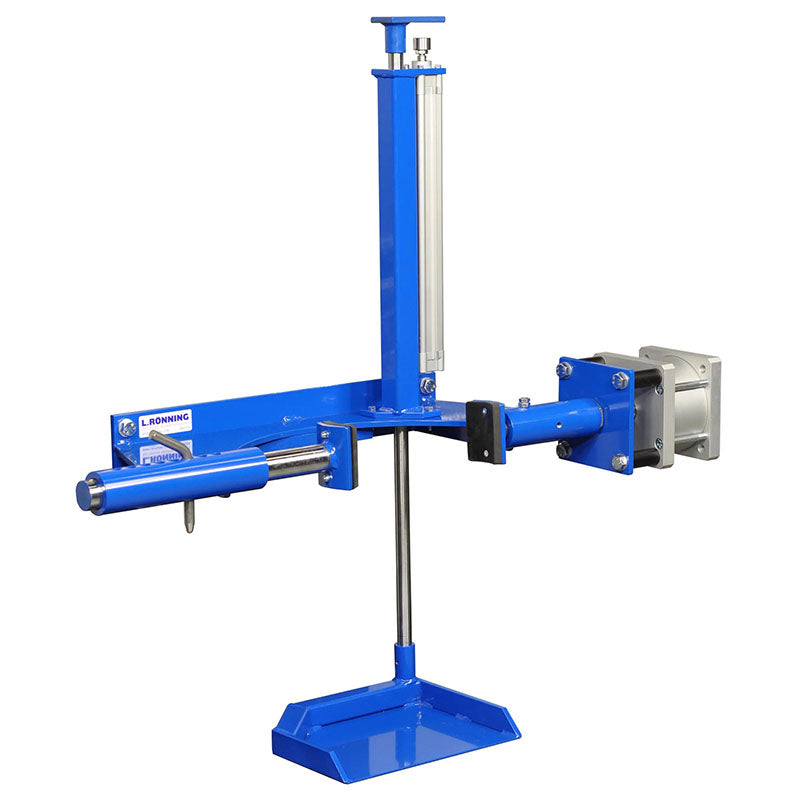

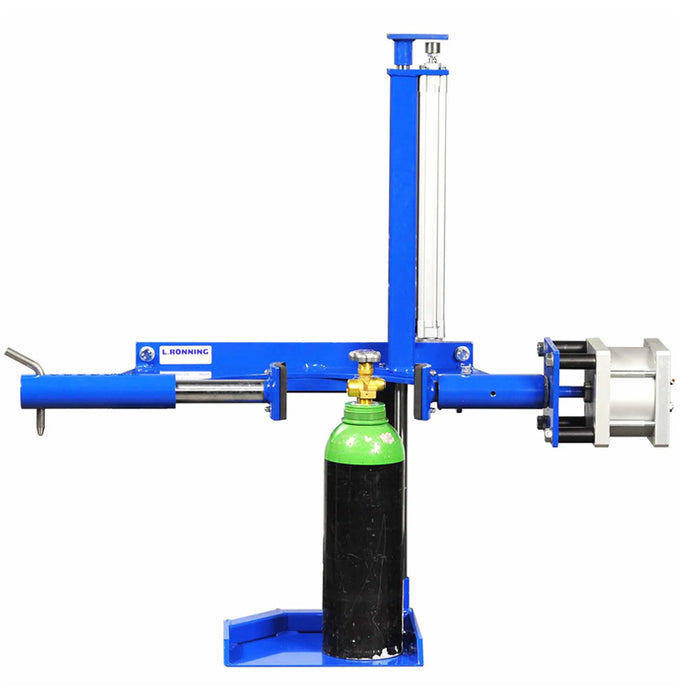

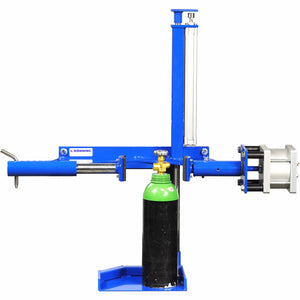

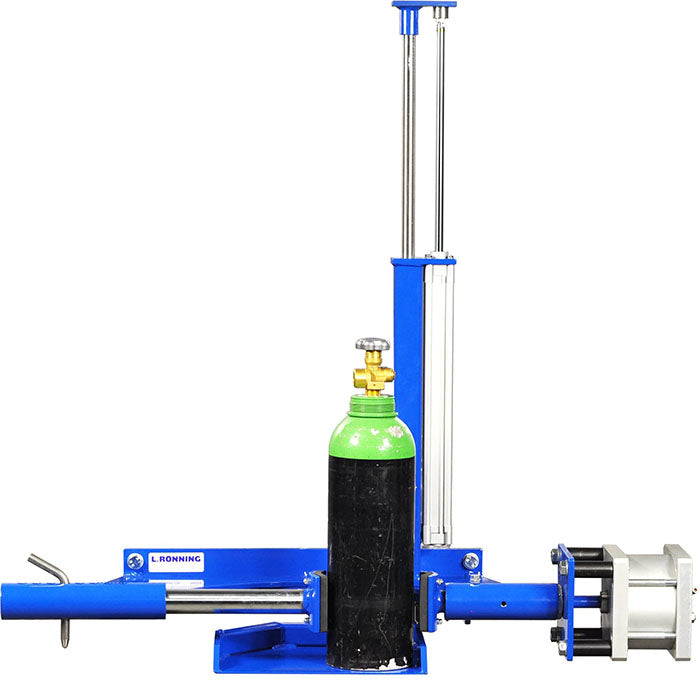

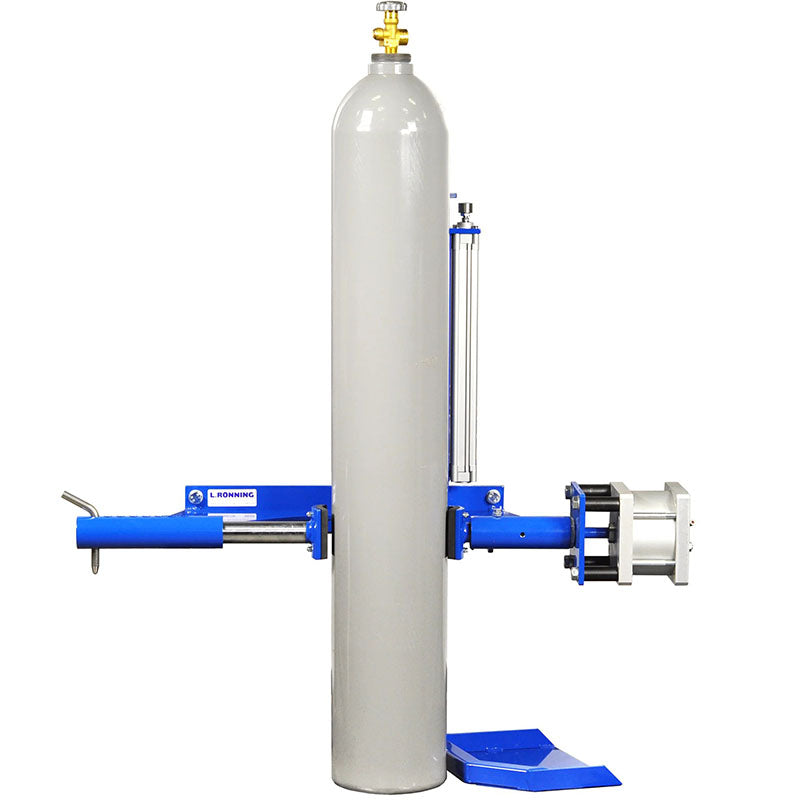

Can be retrofitted on any old Ronning valving machine M103-00x and clamp device M125-xxx. The gas cylinder is rolled onto a lift platform. The lifting is operated by a manually controlled compressed air cylinder.

- Can be mounted to any clamping device.
- Will give a more convenient working position.
- The lifting platform can be swung aside.

• Working pressure: 6 bar.
• Travel: 320 mm.
• Lift capacity 30 kg.
