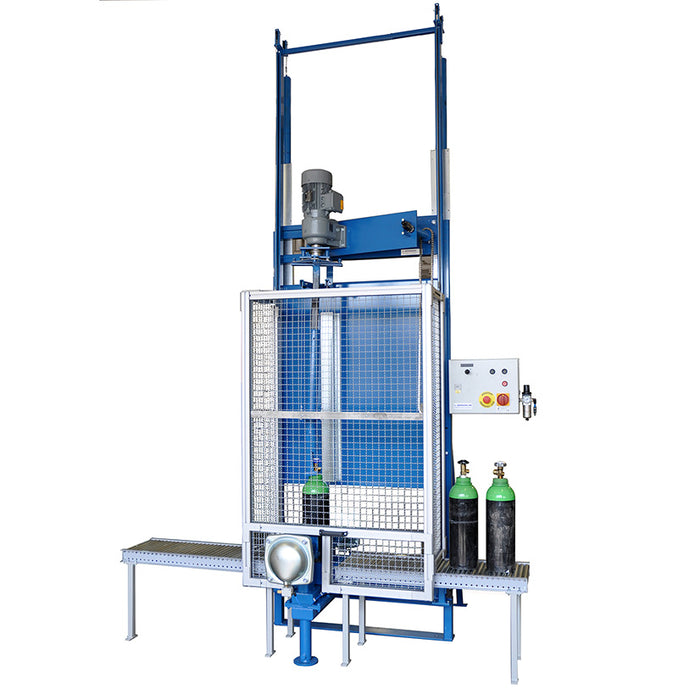

Valving machine for small gas cylinders - M103-810-000

Quantity

Trusted machine for efficient valve handling. This machine is designed to remove and insert valves in gas cylinders. Built for safety, precision and reliability. This model (103-810-000) is customized to handle small gas cylinders in roller conveyor systems.

Key Features:

Based on the original Valving Machine M103-000: Well-proven technology used in the gas industry for many years.
Special design: Designed for small cylinders handled with roller conveyors.
Roller conveyor compatibility: Seamless integration with roller conveyor systems (not included in the supply).
Self-centering clamping device: Pneumatic clamping system with two air cylinders for secure and accurate positioning.
Free-standing design: Rigid free-standing support (M103-116-000).
High accuracy: Ensures precise valve handling for optimal performance.
Flexibility: The same machine can be used for both valving and de-valving.
Fast and reliable: Installs or removes a valve in approximately 14 seconds.
High repeatability: The preset torque value remains constant.
Advanced operation: Powered by an electric gear motor and pneumatic clamp unit.
Low maintenance: Engineered for durability and minimal upkeep.
Optional fittings: A wide range of optional fittings are available.
Enhanced safety: Equipped with a sliding mesh guard and safety interlock.

Specifications:

Length of shortest cylinder: Customized to meet specific needs.
Length of longest cylinder: Customized to meet specific needs.
Cylinder diameter capacity: Fully customizable.
Valve wrench model: M131-729 with spanner jaw gap tailored to your requirements.
Machine height: Customized.
Torque setting: Up to 500 Nm at 50 Hz.
