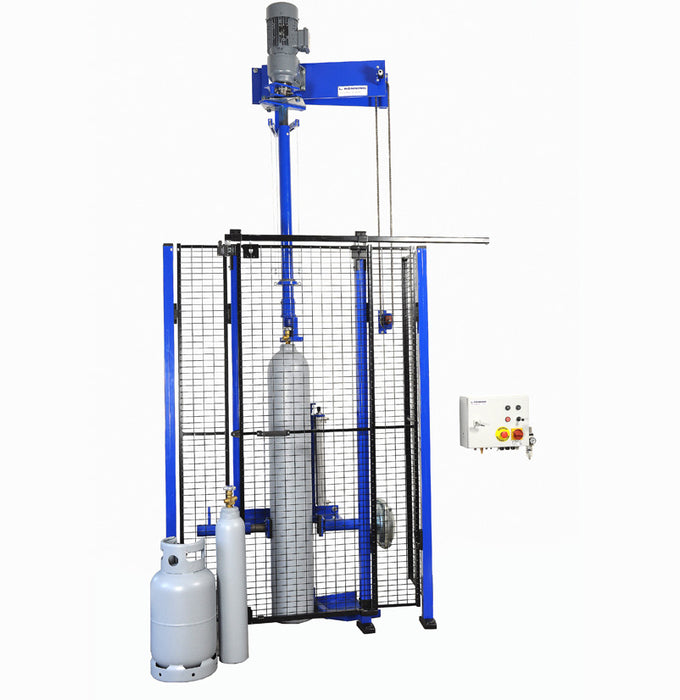

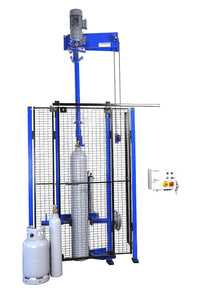

Valving machine

Valving machine - M103-001

  • Unit price per

Product descritpion

Standard valving machine with fixed dimensions.

To remove and insert valves into seamless gas cylinders, welded gas cylinders and fire extinguishers.

Can also be customized according to customers specifications (see M103-000).

- The original valving machine.
- High accuracy.
- Fast and reliable.
- Operated by electric geared unit and pneumatic clamp unit.
- Minimum requirement of maintenance.
- Mesh guard with sliding door and safety interlock.

  • Length of shortest cylinder: 630 mm - 1700 mm.
  • Cylinder diameter capacity: 100-320 mm.
  • Valve wrench: M131-729 with spanner jaw gap: 28,0 + 30,0 + 32,0 mm.
  • Total machine: height 3660 mm.
  • Torque setting: up to 500 Nm.
Spare parts

Rubber Pads – M125-125-109

Optional fittings

Support for valving machine - M103-116-000

Support for valving machine - mobile - M103-116-484

Machine guarding valving machine - M103-124-000

Additional protection kit - polycarbonate - M103-589-000

Additional protection kit - M103-095-106

Device for cylinders with fixed valve guard – M103-650-112

Support for short cylinders – M103-827-000

Lifting device for small cylinders - M103-122-001

Machine guarding valving machine - M103-124-000

Valve outlet position device – M103-650-112

Mechanical torque meter - M103-121-000
