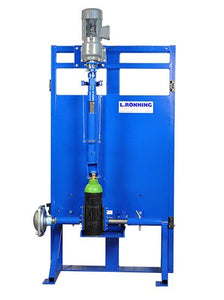

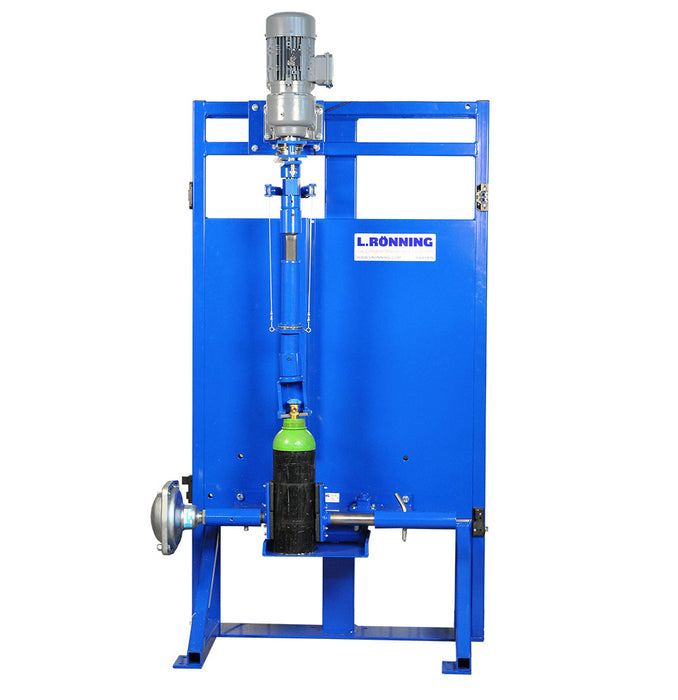

Valving machine with electronic torque measuring and control system - M103-568-005

Quantity

A high-performance valving machine designed for precision and efficiency. Equipped with cutting-edge technology, it ensures accurate torque settings and the possibility for integration with digital systems for enhanced functionality.

Key Features:

Based on the original M103-000/001 Valving Machine: Well-proven technology used in the gas industry for many years.
High accuracy: Delivers precise valve handling for exceptional performance (accuracy 2–4%).
Flexibility: The same machine can be used for both valving and de-valving.
Fast and reliable: Installs or removes a valve in approximately 25 seconds.
High repeatability: The preset torque value remains constant.
Customizable torque limits: Six preset torque settings for applications between 80–300 Nm.
High torque capacity: Torque sensor supporting up to 500 Nm.

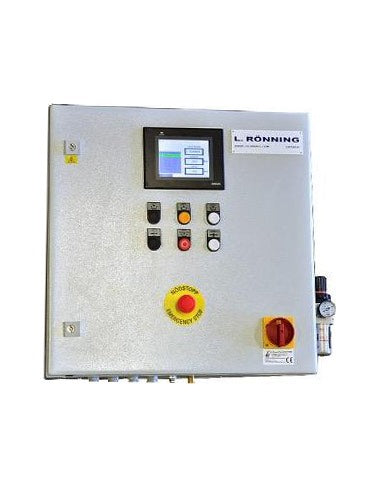

Interface: 7-inch HMI screen for configuration and real-time torque display.
Digital connectivity: Digital data output port for optional connection to external systems.
Advanced operation: Powered by an electric gear motor and pneumatic clamp unit.
Low maintenance: Engineered for durability and minimal upkeep.
Optional fittings: A wide range of optional fittings are available.
Enhanced safety: Equipped with a mesh guard, sliding door and safety interlock.
