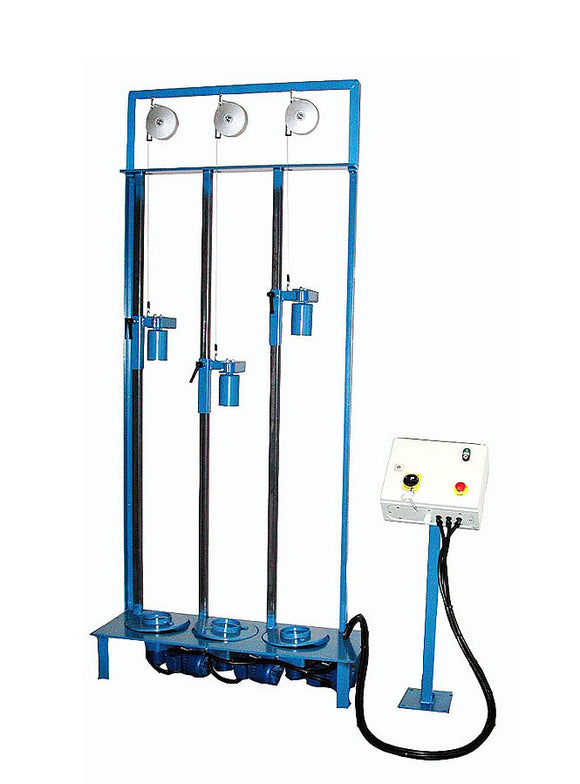

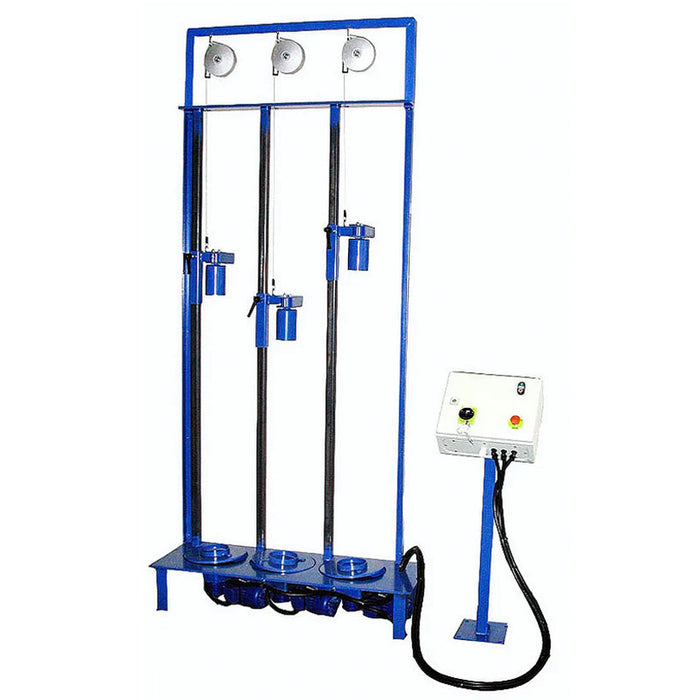

SPRAY PAINTING MACHINE FOR GAS CYLINDERS
The gas cylinders will rotate to enable manual painting by means of a spray gun.
Quick and ergonomic method to apply paint.
- For easy handling when loading and unloading the gas cylinder the turning disc is at floor level. Requires a pit with the depth 260 mm.
- Electric control panel.
- The machine must be connected to an extractor unit.
- Max. cylinder diameter: 270 mm.
- Max. cylinder length: 1650 mm.
The electric motors can also be supplied in explosion protected design.
The following options are available:
Manual spray painting for 1 gas cylinder - M169-410-001.
Manual spray painting for 2 gas cylinders - M169-410-002.
Manual spray painting for 3 gas cylinders - M169-410-003.
Manual spray painting for 4 gas cylinders - M169-410-004 .
Manual spray painting for 4 gas cylinders explosion proof - M169-410-004-EEX.
Manual spray painting for 6 gas cylinders - M169-410-006.
Manual spray painting for 6 gas cylinders explosion proof - M169-410-006-EEX.
At request for quotation please specify number of gas cylinder.
