External cleaning & painting machine for gas cylinders – M148-152-003

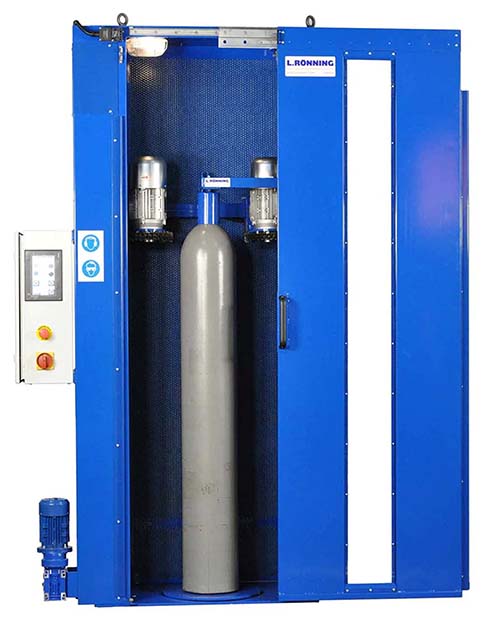

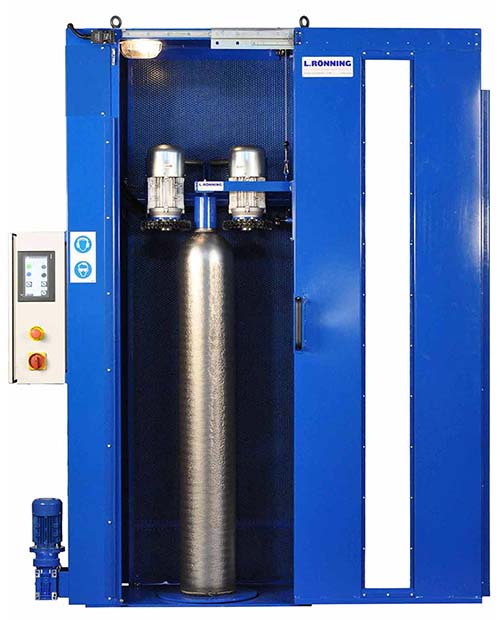

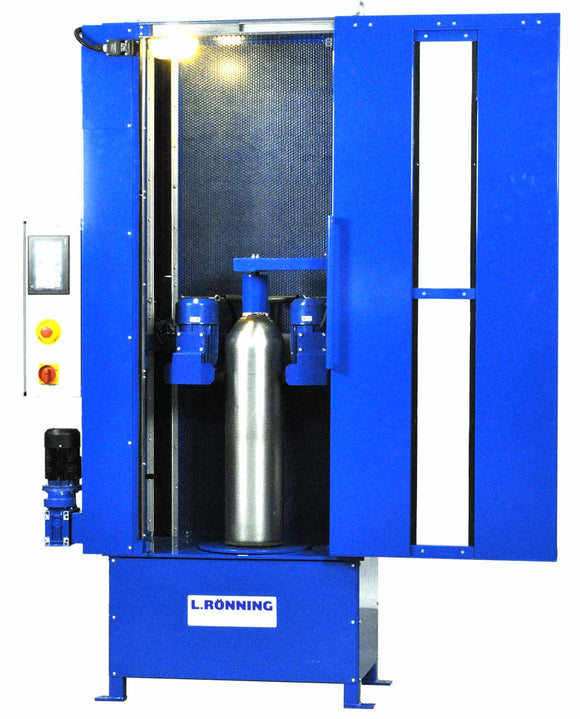

EXTERNAL CLEANING AND PAINTING MACHINE FOR GAS CYLINDERS

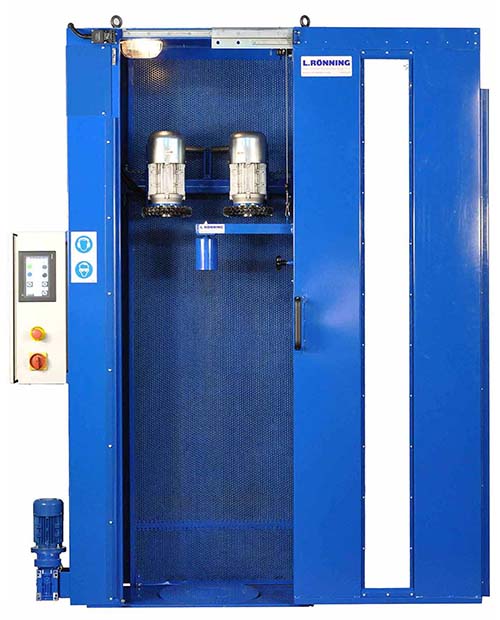

The cylinder is cleaned by means of 2 rotating steel wire brushes.
The cleaning cycle is fully automatic and will also clean the shoulder on a seamless cylinder.
After the cleaning cycle it is possible to paint the cylinder.
- Requires a pit with the depth 260 mm. Gas cylinder at floor level. Easy handling when loading and unloading
- The machine is designed to remove rust, dirt and loose paint
- Controlled by frequency converter and touch panel
- Brush arm travel speed is adjustable

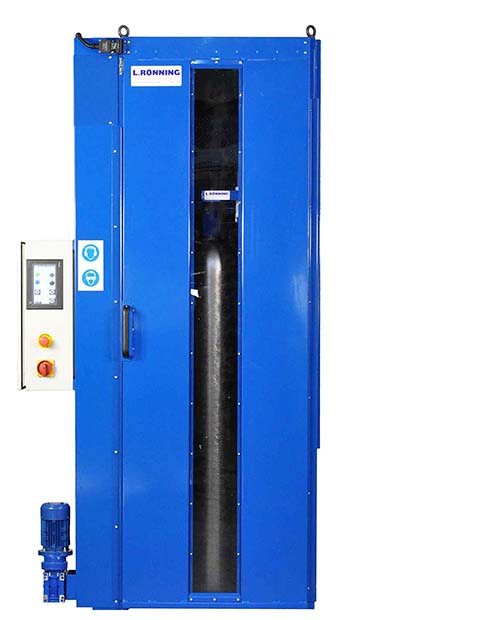

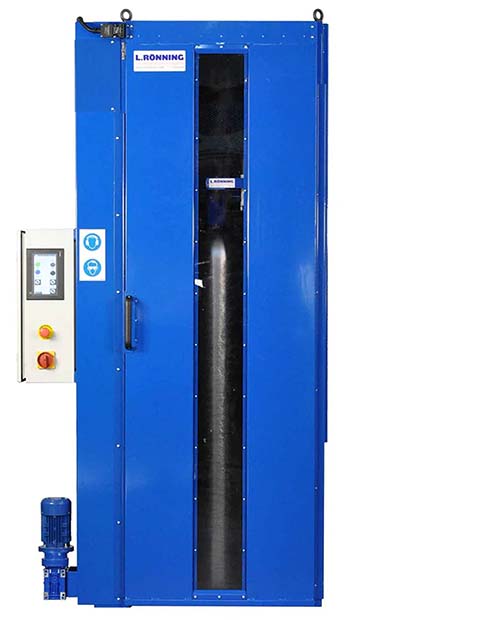

- Sliding door
- Cabinet, walls and door of sound absorbing material
- To be connected to dust extraction unit such as M148-165
- Cylinder height: Up to 1800 mm.
- Cylinder diameter: Up to 380 mm.
Filter box - M148-165
Circular brush - Steel wire - Standard - M148-154-000
Circular brush - Nylon with abrasive – M148-154-155
Circular brush - Nylon M148-154-156
