Automatic spray painting machine for gas cylinders - M169-108-xxx
SPRAY PAINTING MACHINE FOR GAS CYLINDERS.
Automatic spray painting with a fast and professional result.

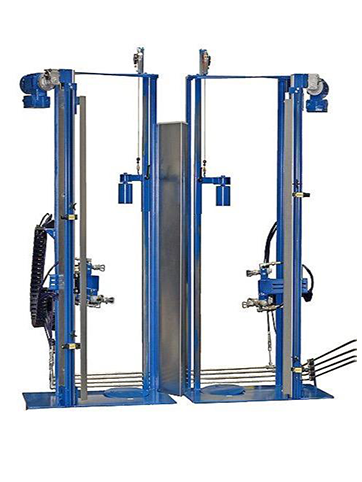

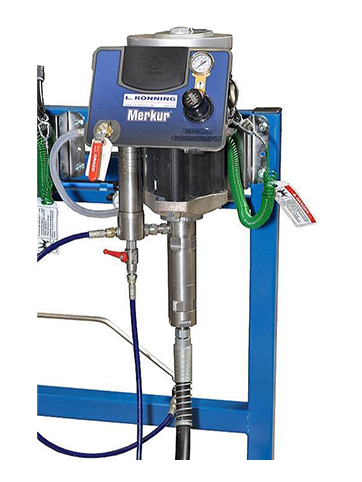

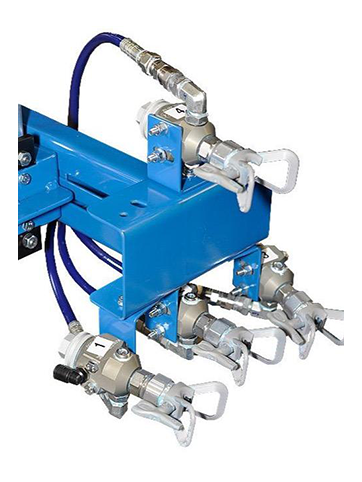

Supplied complete with cylinder turning device, support arrangement, spray nozzles, travel guide and high pressure piston paint pump.
- Possible to paint the shoulder and the body with different colors.
- Each cylinder can be painted individually or all at the same time.
Automatic spray painting with a fast and professional result.
Supplied complete with cylinder turning device, support arrangement, spray nozzles, travel guide and high pressure piston paint pump.
- Possible to paint the shoulder and the body with different colors.
- Each cylinder can be painted individually or all at the same time.
- Estimated process time: 2 minutes.
- Cylinder diameter: 120 - 270 mm.
- Cylinder length: 400 -1650 mm.

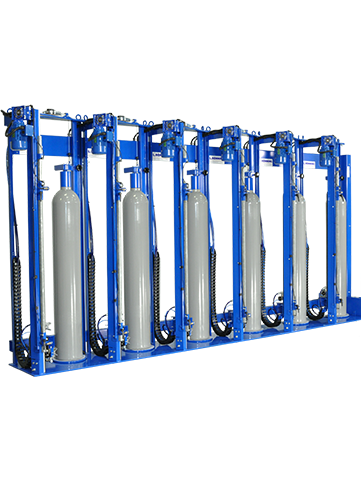

- Number of cylinders: 1-10.
- Number of colours: 1-6.
The following options are available:
- Number of cylinders: From 1 up to 10.
- Number of colors: From 1 up to 6.
- Cylinder diameter: up to Ø270 mm or up to Ø380 mm.
- Type of paint: Water based or solvent based.
- Explosion protection: Yes / No.
Please indicate your choice.
