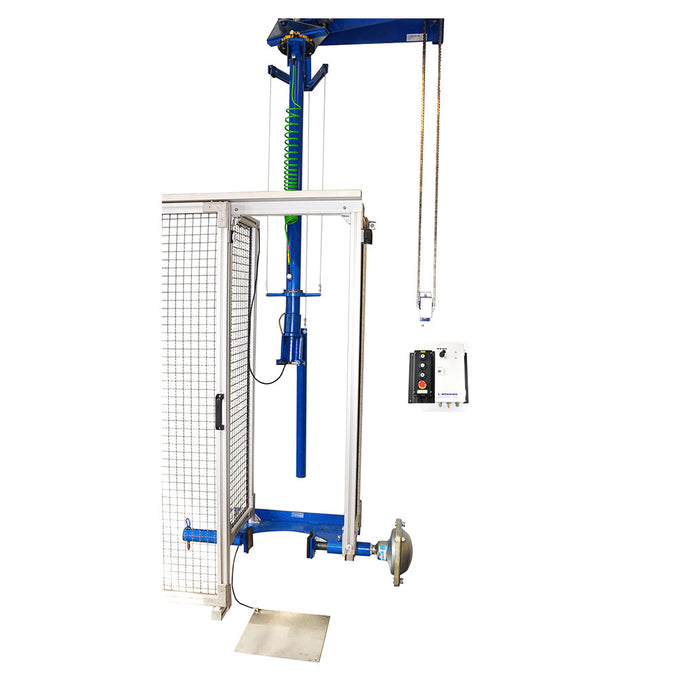

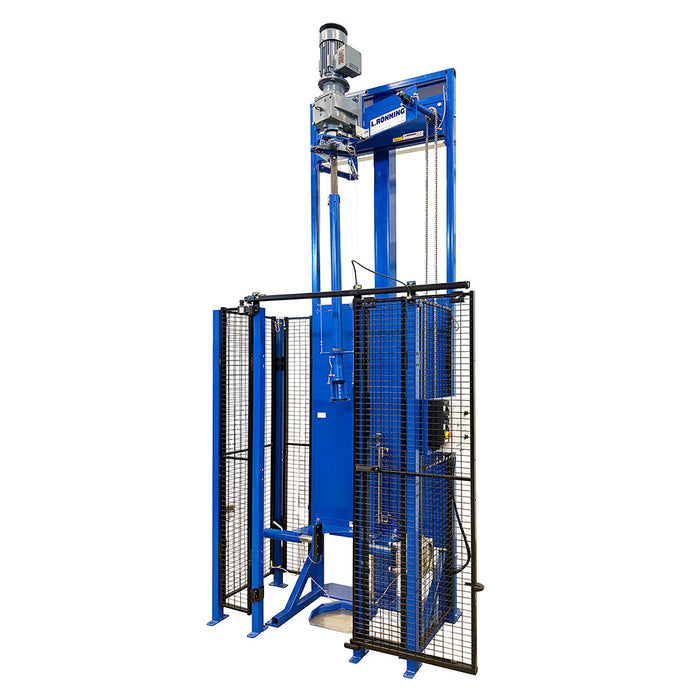

Valving machine - Explosion Proof - M103-618-ATEX
The explosion-proof valving machine is specifically designed for safe and efficient valve handling in hazardous environments. It is designed for handling gas acetylene, hydrogen, butane, propane cylinders. It is engineered to remove and insert valves into seamless welded gas cylinders, and fire extinguishers. This machine combines the original valving technology with enhanced safety features, offering both reliability and precision in high-risk settings. Customization options are available to meet specific customer requirements (see model M103-000).
Key Features:
- Based on original Valving Machine M103-000: Well-proven technology that has been used in the gas industry for many years.
- Explosion-proof design: Equipped with an explosion-proof electric motor, push button switch, and limit switch, ensuring safe operation in hazardous environments.
- High accuracy: Ensures precise valve handling for optimal performance.
- Flexibility: The same machine can be used both for valving and de-valving.
- Fast and reliable: Designed to streamline operations with dependable results.
- Low maintenance: Engineered for durability and minimal upkeep.
- Customization options: Tailored to meet your specific needs and requirements, ensuring the perfect fit for your operations.
- Optional fittings: A wide range of optional fittings are available.
- Enhanced safety: Equipped with a mesh guard, sliding door, and safety interlock.
Specifications:
- Length of shortest cylinder: Customized to meet specific needs.
- Length of longest cylinder: Customized to meet specific needs.
- Cylinder diameter capacity: Fully customizable.
- Valve wrench: M131-729 with spanner jaw gaps of 28.0, 30.0, and 32.0 mm.
- Torque setting: Up to 500 Nm.
Optional fittings
Support for valving machine - M103-116-000
Additional protection kit - polycarbonate - M103-589-000
Additional protection kit - M103-095-106
Valve outlet position device for cylinders with fixed valve guard – M103-650-112
