Revolving External Cleaning & Painting Machine for gas cylinders - M148-169-109

  • Unit price per

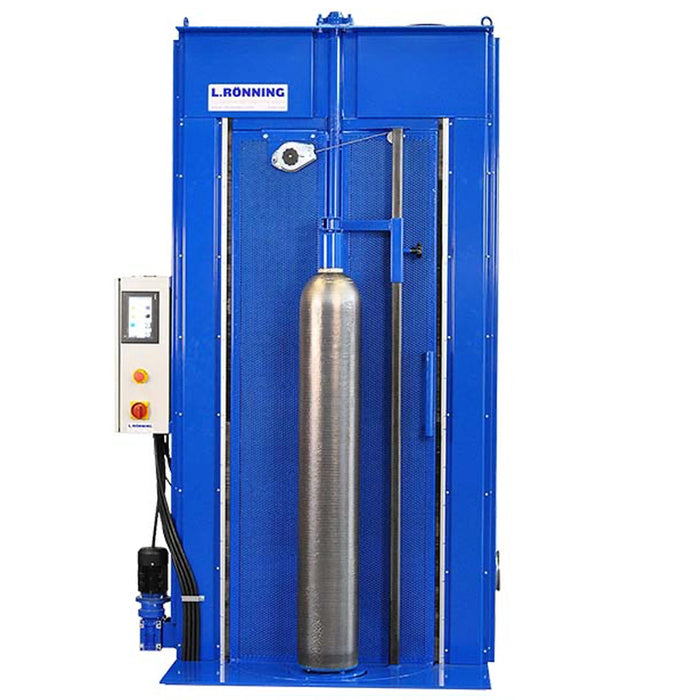

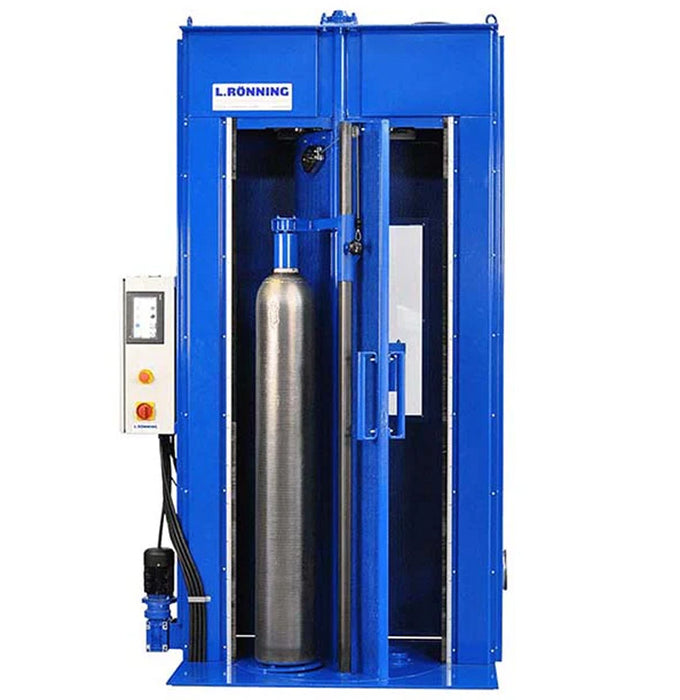

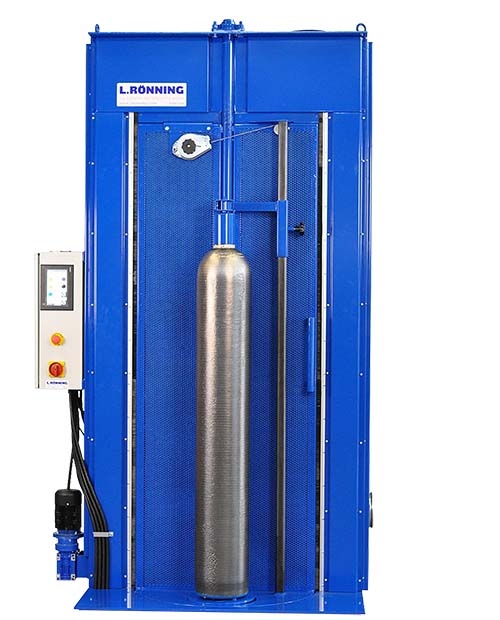

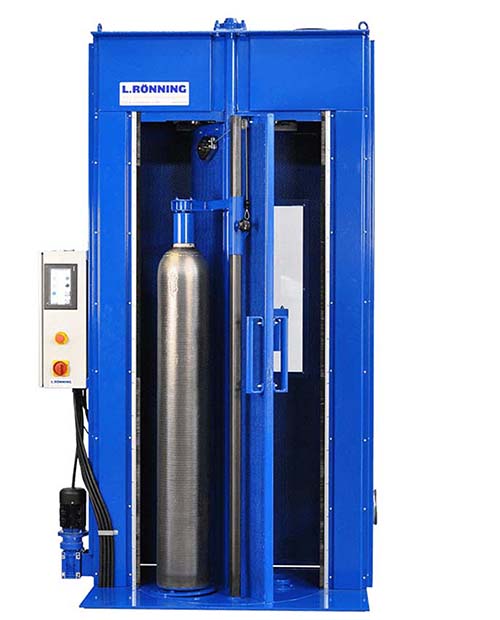

REVOLVING EXTERNAL CLEANING & PAINTING MACHINE.

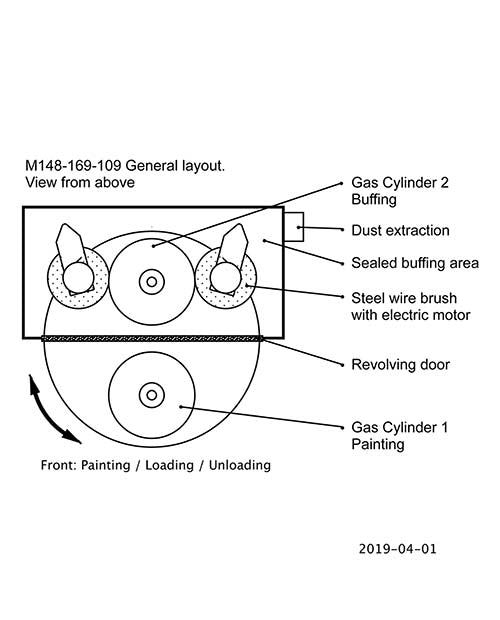

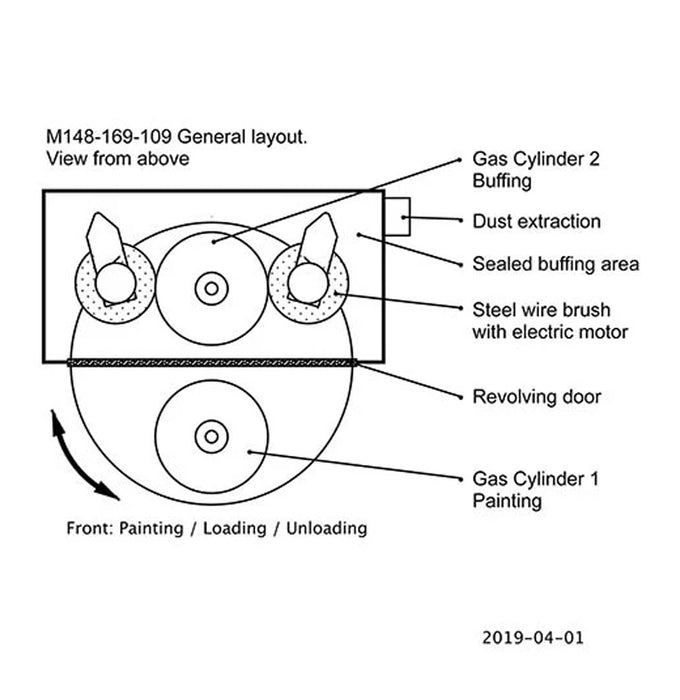

Two position cabinet. One cylinder can be cleaned at the same time as a cylinder is being painted.

The cylinder is cleaned by means of 2 rotating steel wire brushes. The cleaning cycle is fully automatic and will also clean the shoulder on a seamless cylinder.

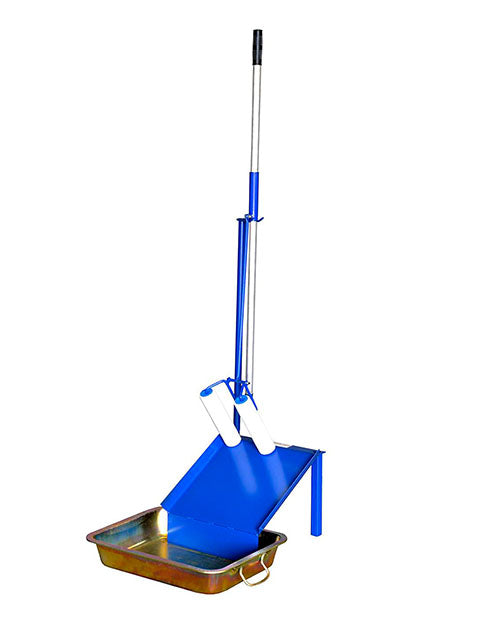

After the cleaning cycle the cylinders can be painted manually by means of rollers.

- Controlled by frequency converter and touch panel.
- Brush arm travel speed is controlled steplessly
- Easy handling, cylinder in floor leven, installation requires a pit.
- Cabinet, walls and door of sound absorbing material.
- Doors to isolate each section.

  • Cylinder diameter up to 270 mm.
  • Cylinder height up to 1650 mm.
