Pressure testing unit - simplified model - M187-383-002

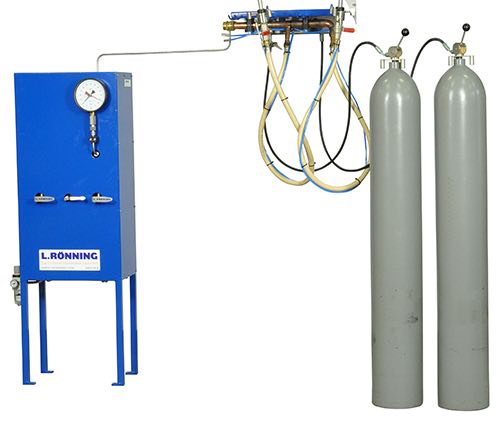

PRESSURE TESTING UNIT – SIMPLIFIED MODEL.

1 high pressure manifold in stainless steel tube
1 mounting bracket for the test heads and filling heads.

- the cylinders are filled one by one with water from the water main
- two cylinders can be pressure tested at the same time
- after pressure test, the cylinders has to be moved to the manual inverter (M239-595-001)

• Capacity 2 cylinders.
• Working pressure: 450 bar.
• Proof pressure test.

Not included in the supply of M187-383-002, to be ordered separately:

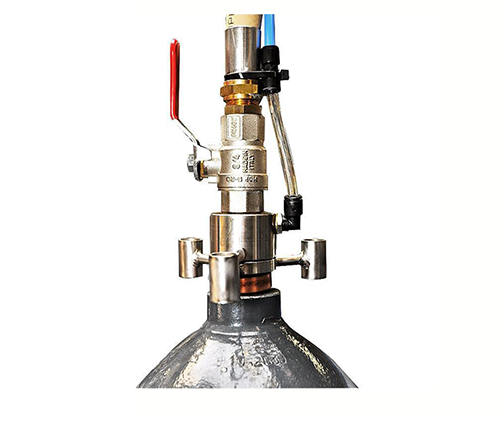

- M200-203-000 test adapter

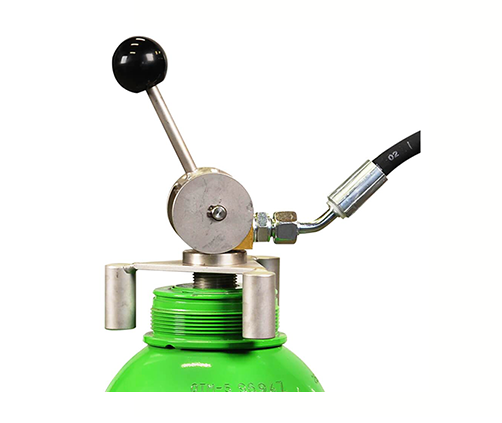

- M210-000 / M210-100 water filling heads

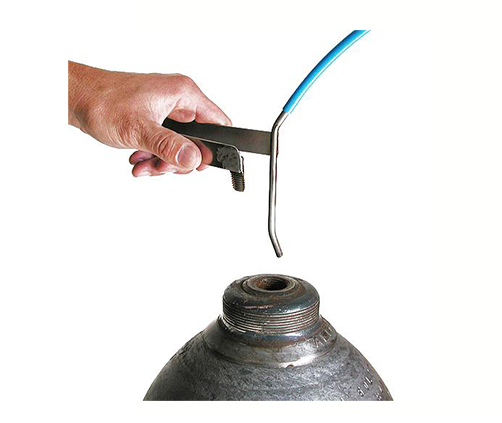

- M519-000 drainage nozzles

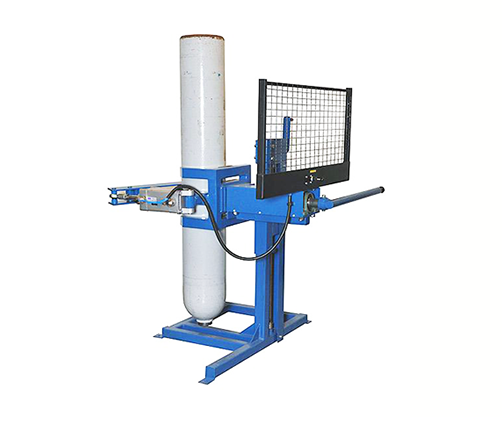

- M239-595-001 Wide range manual inverter
- M647-587-000 Test pump (M72D),
- Water fill pump,
- Water reservoir
- Water catch tray
