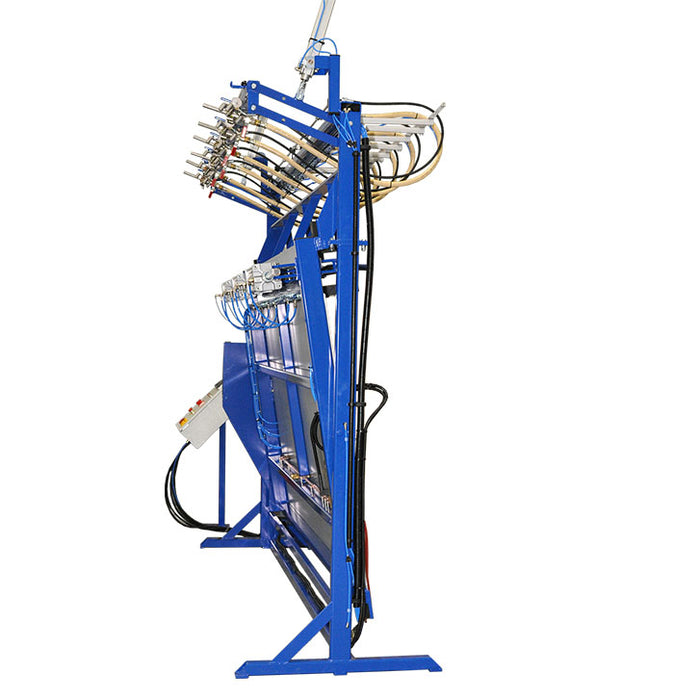

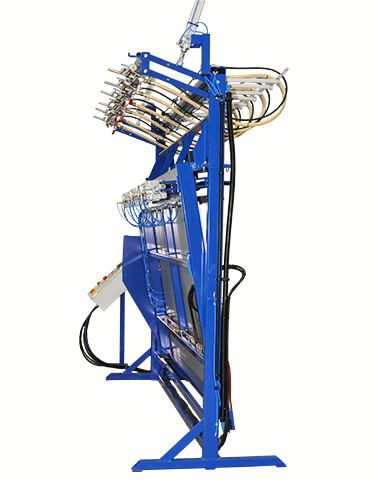

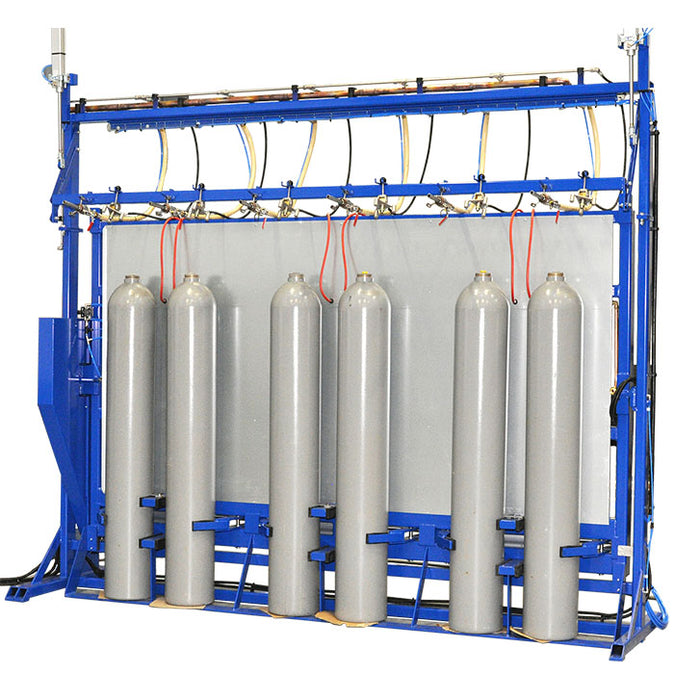

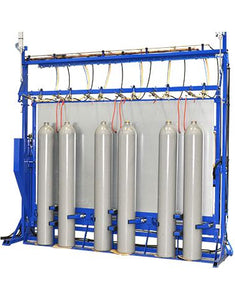

Pressure testing unit for gas cylinders - Ø300mm/H1800mm - M187-770-XXX

  • Unit price per


Product description

PRESSURE TESTING UNIT FOR 4 GAS CYLINDERS - Ø300mm/H1800mm

Pressure testing unit for efficient and safe handling of seamless gas cylinders.

- Electric operated Inverter with pneumatic operated cylinder clamp.
- Suppplied with control panel and safety grating.
- Movable beam for suspension of Filling- and Test heads. Automatic controlled. Will improve the handling of Filling- and Test heads.

To be used together with: Test heads (M200-203-xxx), Water fill heads (M210-000), Emptying nozzles (M519-000).

Operation:
Connect water fill head
Start water filling
Connect test head and start pressure test
Upend gas cylinders
Emptying.

Product options

Alternatives:

Pressure testing unit for 4 gas cylinders 1800 MM - M187-770-004
Pressure testing unit for 6 gas cylinders 1800 MM - M187-770-006

At request for quotation please specify option.
Spare parts
Recommended optional fittings:

Test pumps M647-698-860 or M647-647-000.

Water fill pump M187-420-235.

Water catch tray M187-420-00x.


    •    Proof pressure testing.
    •    Test pressure up to 450 bar (higher test pressure is available on request).
    •    Cylinder diameter Ø 140-300 mm.
    •    Cylinder height 700-1800 mm.


Related products

Pressure testing unit for gas cylinders

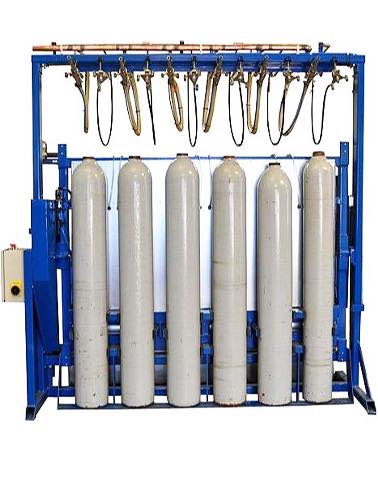

Pressure testing unit for gas cylinders - Ø235mm/H1700mm - M187-000-XXX

Regular price
Pressure testing and valving Machine

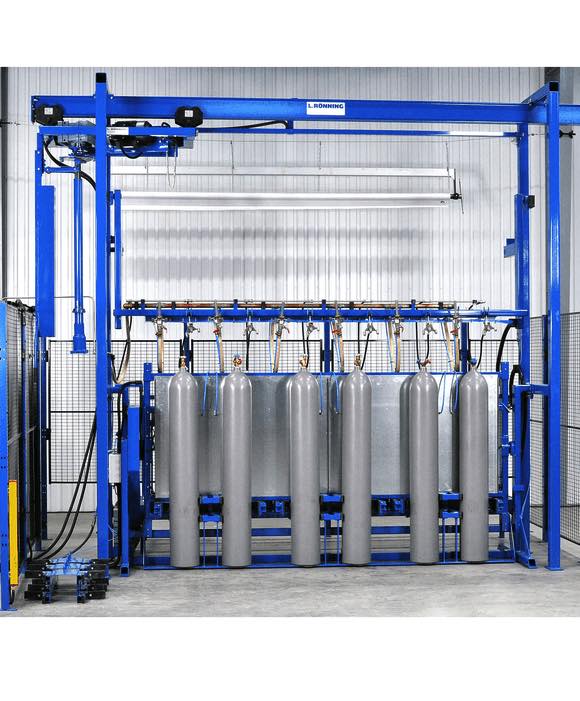

Pressure testing and valving Machine - M187-765-XXX

Regular price

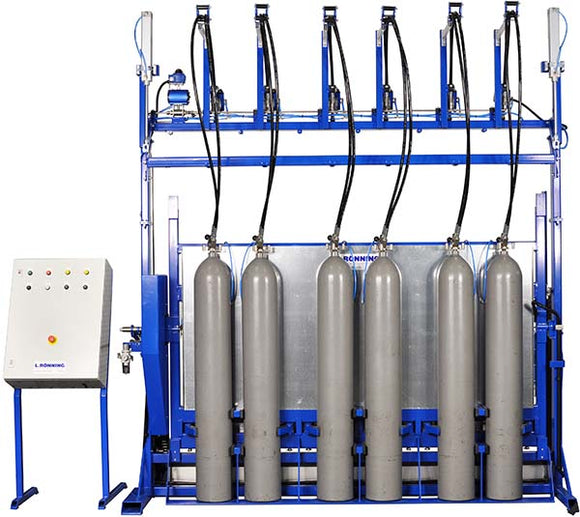

Pressure test unit -  Coaxial filling and test head system – M187-682-006

Pressure test unit - Coaxial filling and test head system – M187-682-006

Regular price

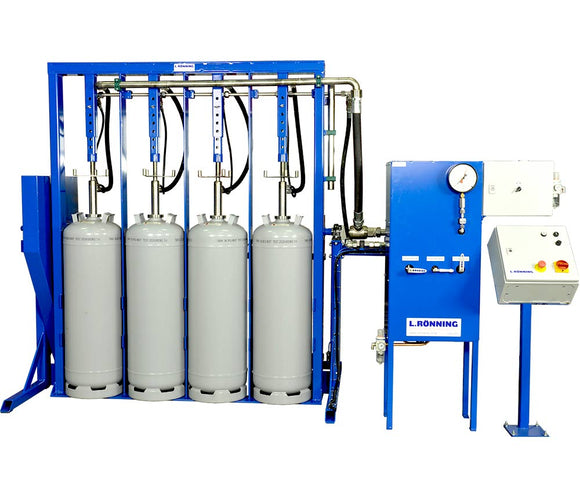

Pressure testing unit for LPG gas cylinder - M187-192-XXX

Pressure testing unit for LPG gas cylinder - M187-192-XXX

Regular price
Pressure testing unit

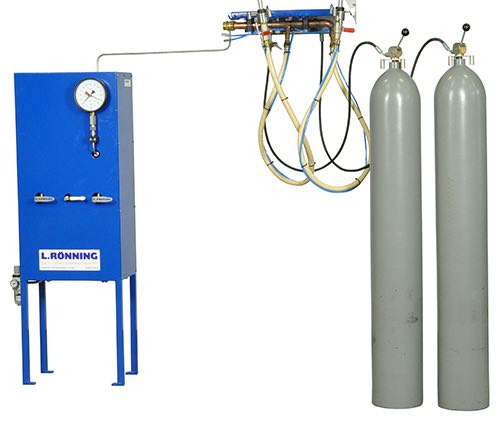

Pressure testing unit - simplified model - M187-383-002
