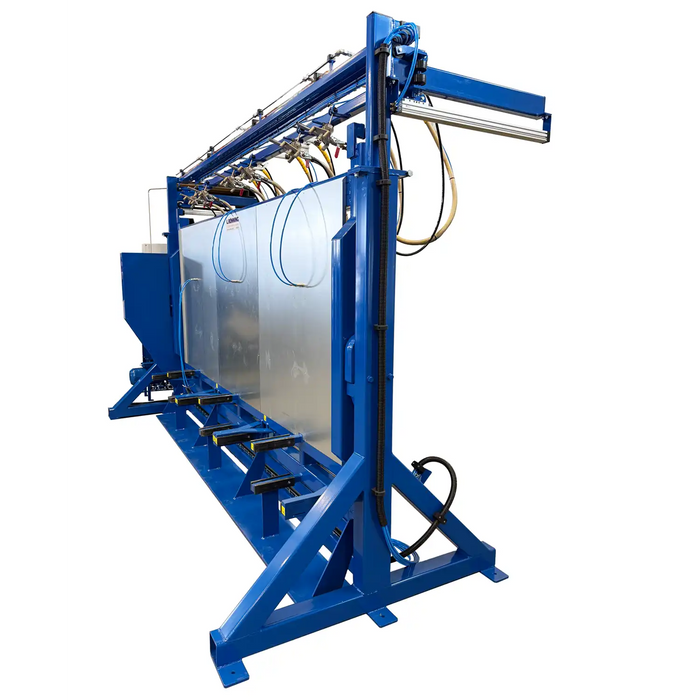

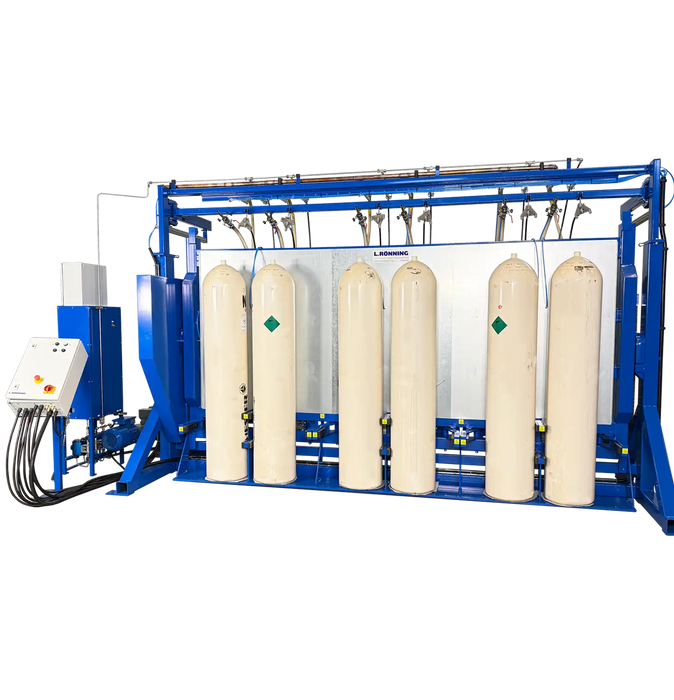

Pressure testing unit for gas cylinders - Ø290mm / H1800mm - M187-781-206
Pressure testing unit for efficient and safe handling of seamless gas cylinders.
Key Features
- Electric operated Inverter with pneumatic operated cylinder clamp
- Suppplied with control panel and safety grating.
- Movable beam for suspension of Filling- and Test heads. Automatic controlled. Will improve the handling of Filling- and Test heads.
To be used together with: Test heads (M200-203-010), Water fill heads (M210-000-010), Emptying nozzles (M519-001).
Specifications
- Proof pressure testing.
- Test pressure up to 450 bar (higher test pressure is available on request).
- Cylinder diameter Ø235-460 mm.
- Cylinder height 1200-2000 mm.
Operation:
- Connect water fill head
- Start water filling
- Connect test head and start pressure test
- Upend gas cylinders
- Emptying.
