Pressure testing unit for gas cylinders - Ø235mm/H1700mm - M187-000-XXX

  • Unit price per


Product description

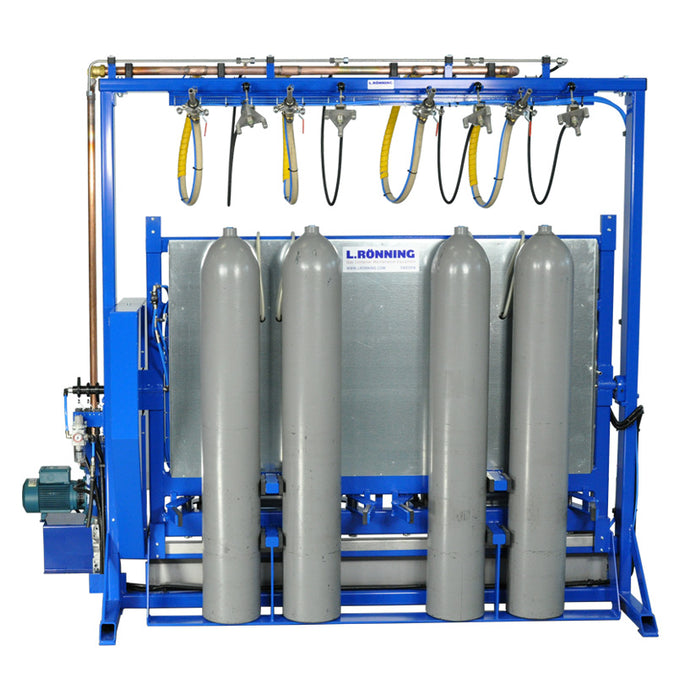

PRESSURE TESTING UNIT FOR GAS CYLINDERS - Ø235mm/H1700mm

- Pressure testing unit for efficient and safe handling of seamless gas cylinders.
- Electric operated Inverter with pneumatic operated cylinder clamps.
- Suppplied with control panel and safety grating.



To be used together with: Test heads (M200-203-xxx), Water fill heads (M210-000), Emptying nozzles (M519-000).
  • Proof pressure testing.
  • Test pressure up to 450 bar (higher test pressure is available on request).
  • Cylinder diameter Ø 140-235 mm.
  • Cylinder height 700-1700 mm


.
Product options

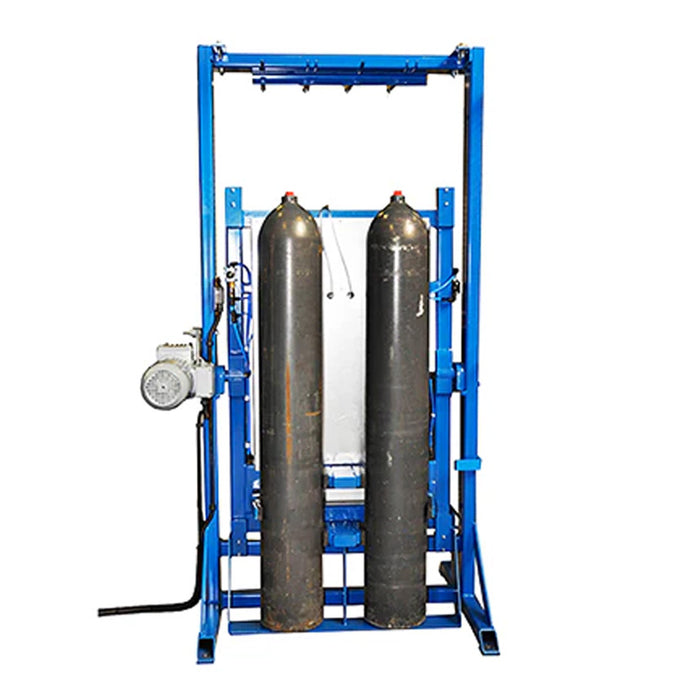

Pressure testing unit for 2 gas cylinders - M187-000-002.
Pressure testing unit for 4 gas cylinders - M187-000-004.
Pressure testing unit for 6 gas cylinders - M187-000-006.
Pressure testing unit for 8 gas cylinders - M187-000-008.
Pressure testing unit for 10 gas cylinders - M187-000-010.

At request for quotation please specify option.

Recommended optionals
M200-203-xxx - Test heads
M210-000 - Water fill heads

M519-000 - Emptying nozzles
M647-698-860 - Test pumps or M647-647-000 - Testing pump
M187-420-235 - Water fill pump
M187-420-00x - Water catch tray
