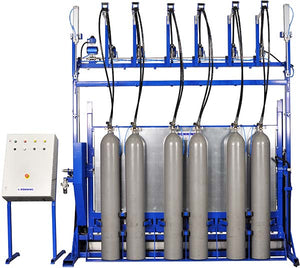

Pressure test unit - Coaxial filling and test head system – M187-682-006
PRESSURE TEST UNIT - COAXIAL FILLING AND TEST HEAD SYSTEM.
The same adaptor is used both for filling and for pressure testing.
Operation: connect water fill and test head / start water filling / pressure test / upend gas cylinders / emptying.
- Electric operated Inverter with pneumatic operated cylinder clamp.

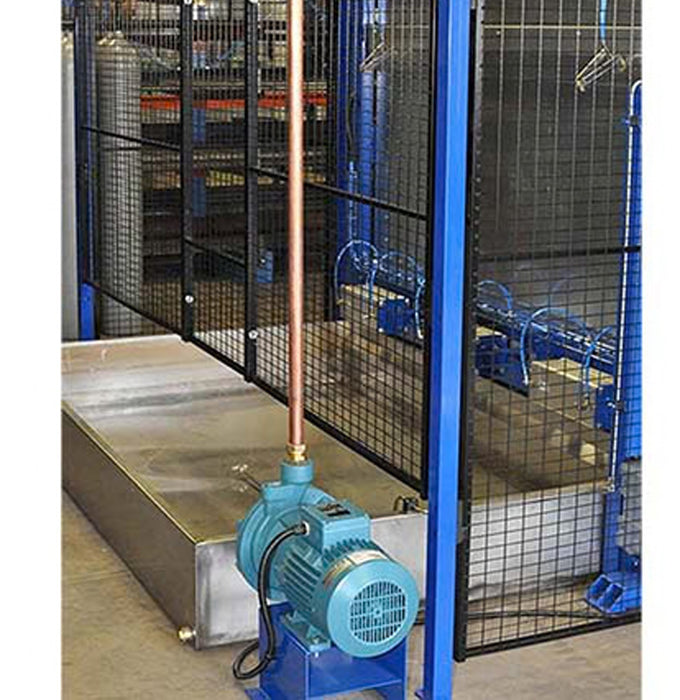

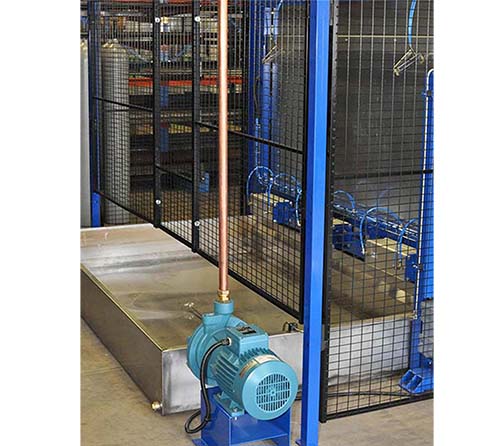

- High capacity water filling pump with manual start and stop.
- Stainless steel water catch tray / reservoir, to collect and reuse water.
- Stainless steel high pressure ball valves, remote controlled.
- Water fill and pressure test system with valves, tubes and hoses.

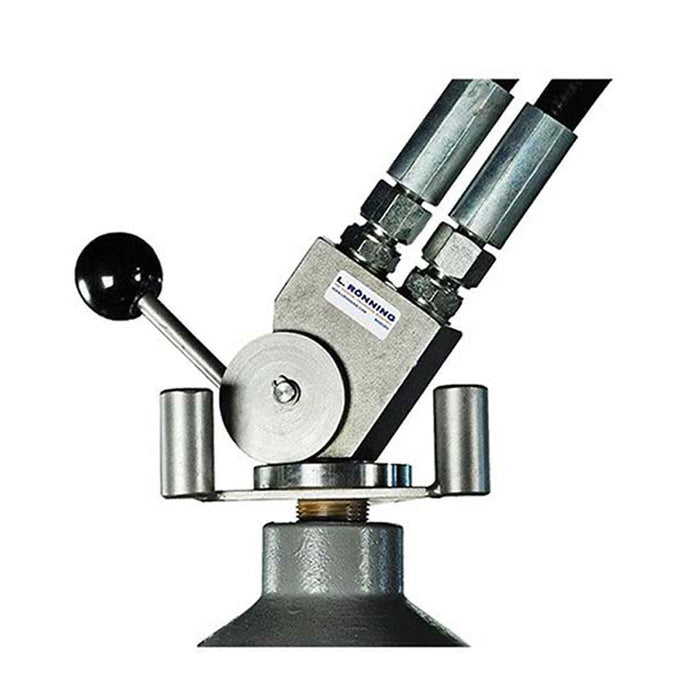

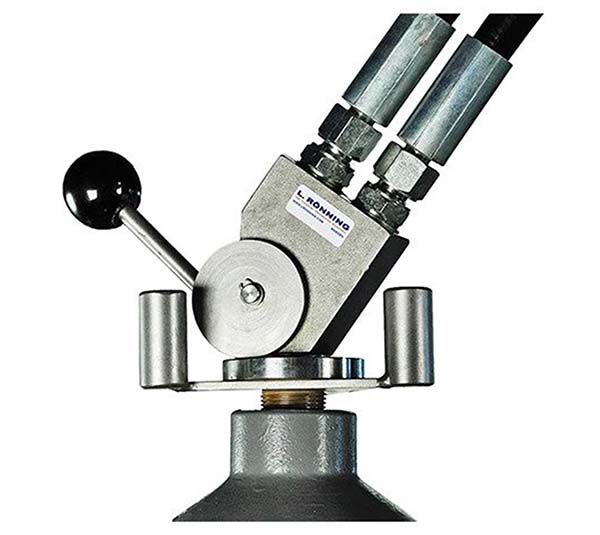

- Coaxial fill and test heads (M682-608-001) and nozzles (M519-000) for emptying.
- Recommended test pump: M647-698-860 (not included).
- Capacity: 6 seamless gas cylinders.
- Proof pressure testing.
- Test pressure: Up to 450 bar.
- Cylinder diameter: 230-270 mm.
- Cylinder height: 700-1800 mm.
- Estimated fill time: 6x50 litre: 2,5-3 min (connecting time not included).
