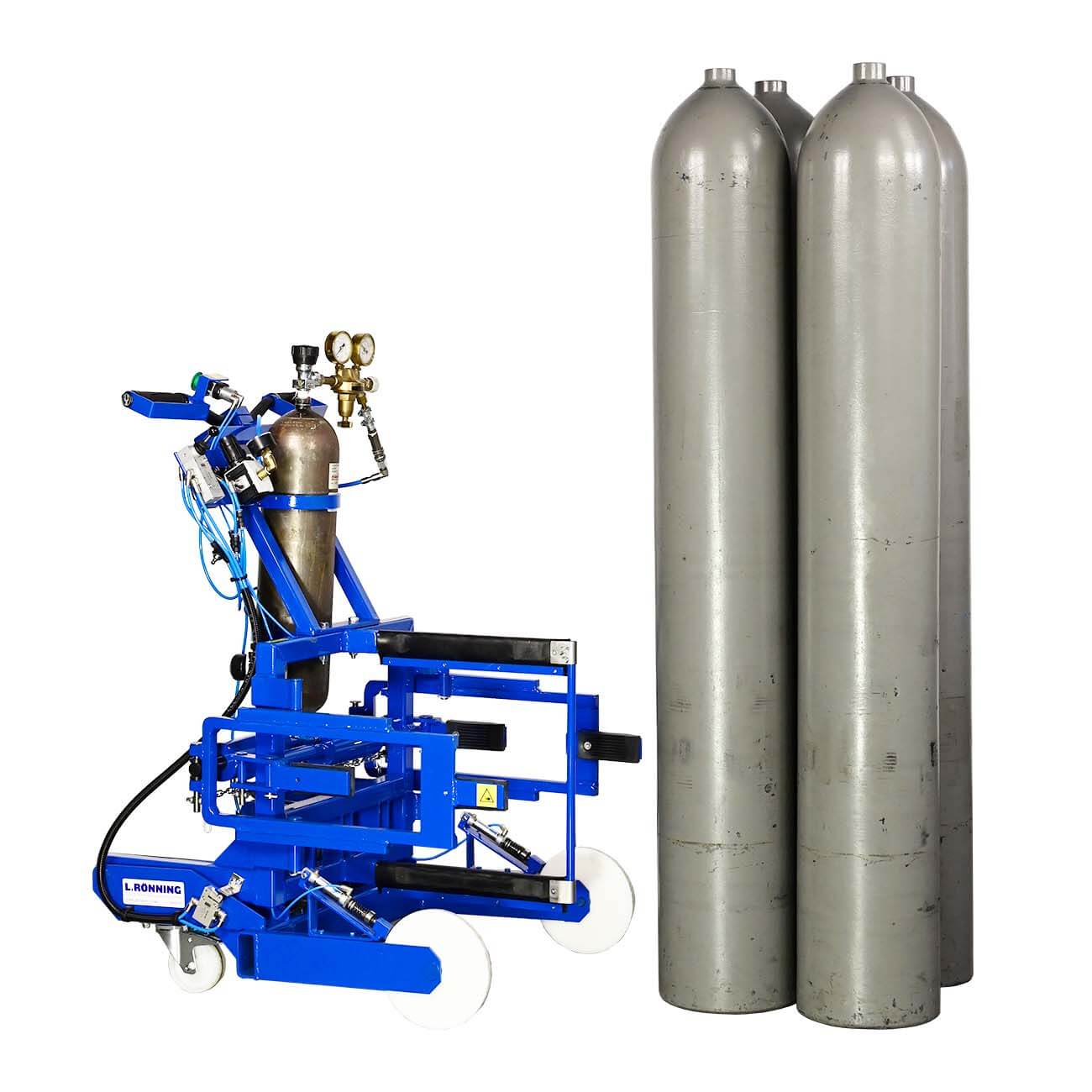

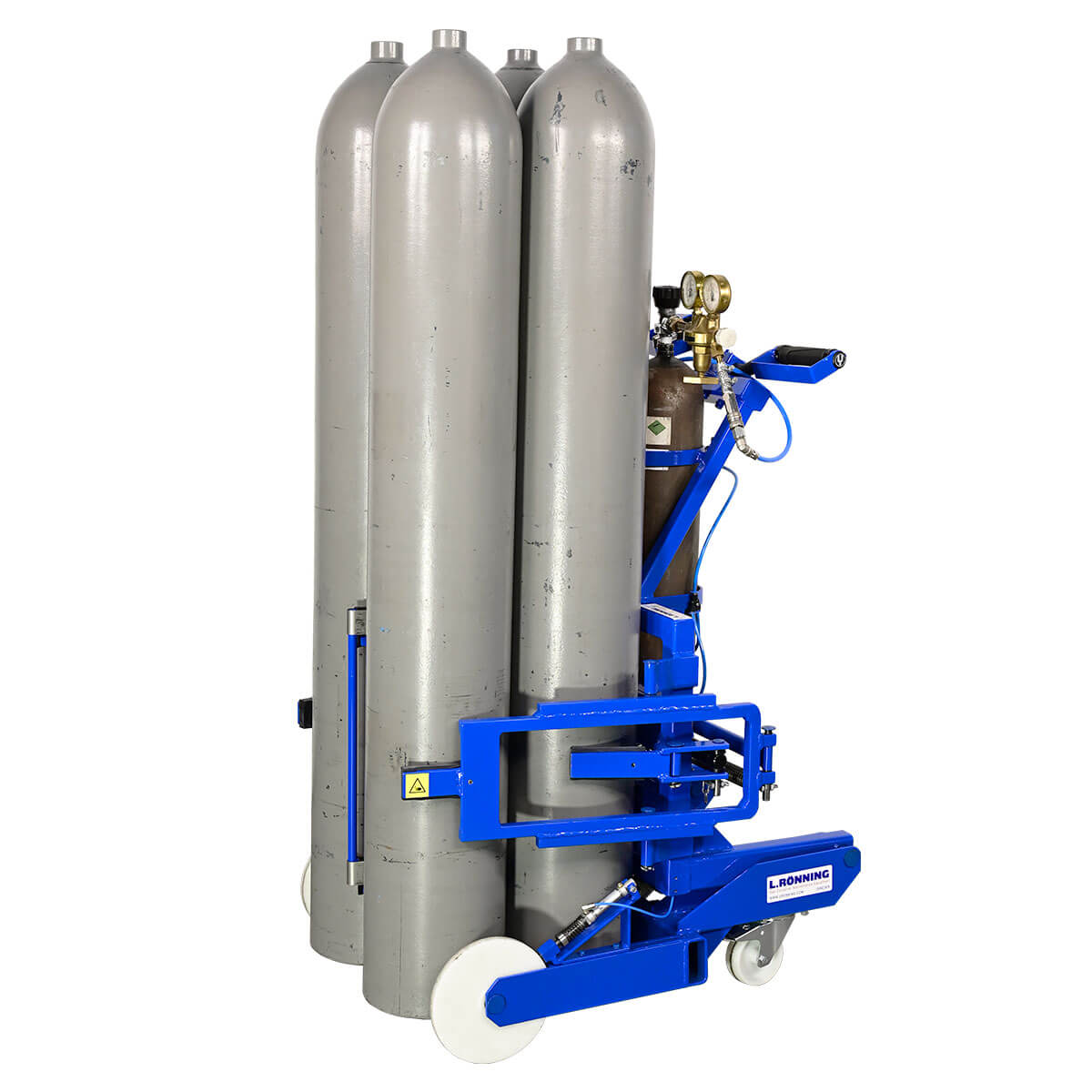

Pneumatic clamp trolley – M822-272-000
Safe and labour-saving when moving few cylinders. Suitable for handling of special gases. The cylinders are clamped and lifted by compressed air or nitrogen from a 7-litre gas cylinder.
- Quick clamp and lift for clearance in one movement.
- Easy to handle and to move.
- Suitable for restricted spaces and narrow passages.
- Avoids the heavy wear-and-tear on floor surface when cylinders are rolled.
- Capacity: 4 cylinders.
- Cylinder diameter: 220-250 mm
- Cylinder length: 700-1800 mm
- Maximum load (total): 400 kg
- Clamp and lift power: compressed air from 7L gas cylinder
Spare parts
Standard rubber pad for clamp arm - M239-950-551
