Inverter for internal washing - M449-000-004

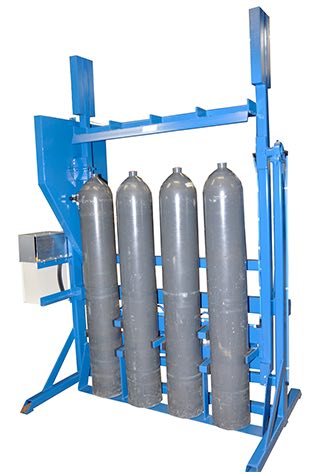

INVERTER FOR INTERNAL WASHING.
Special inverter for internal cleaning/washing with high pressure jet water.

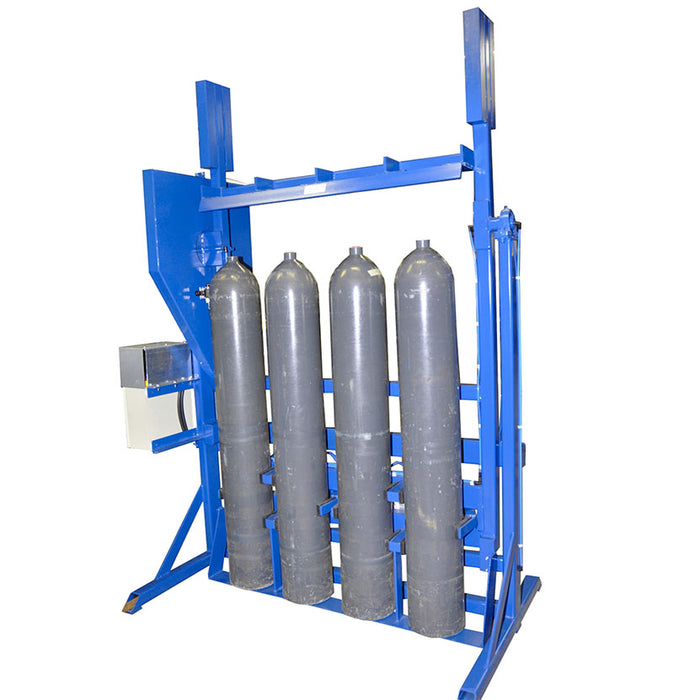

- The cylinders are clamped in a frame by compressed-air cylinders.
- A worm gear motor upends the cylinders through a chain gear.
- The inverter is equipped with a 3 side protective grating.

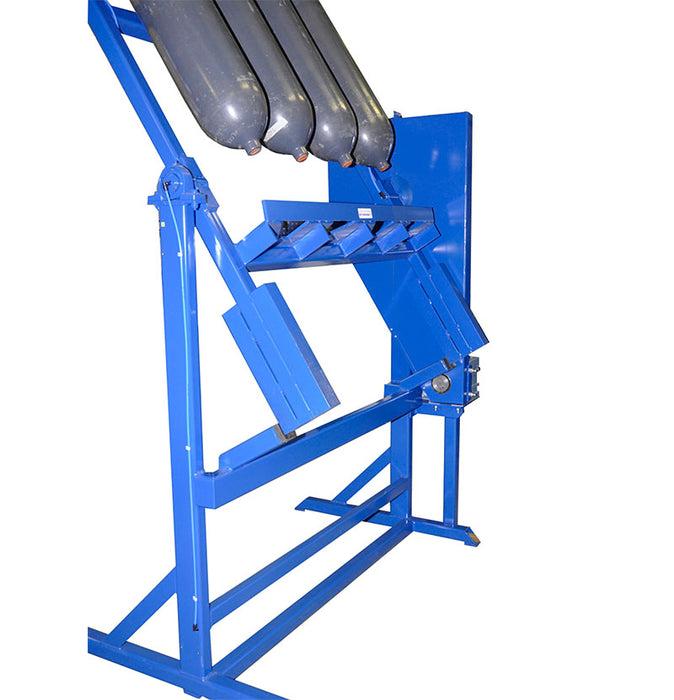

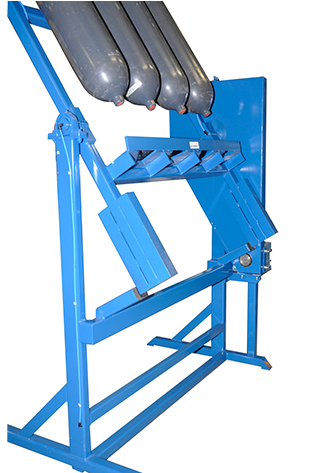

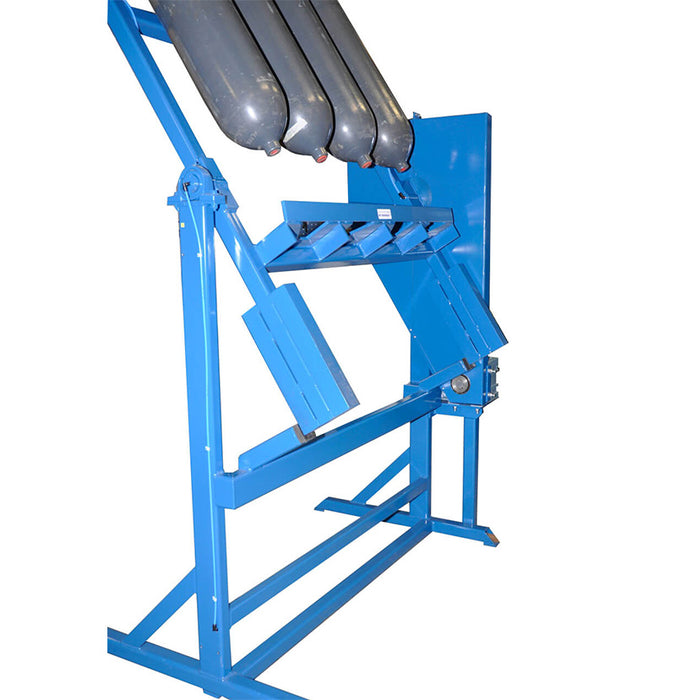

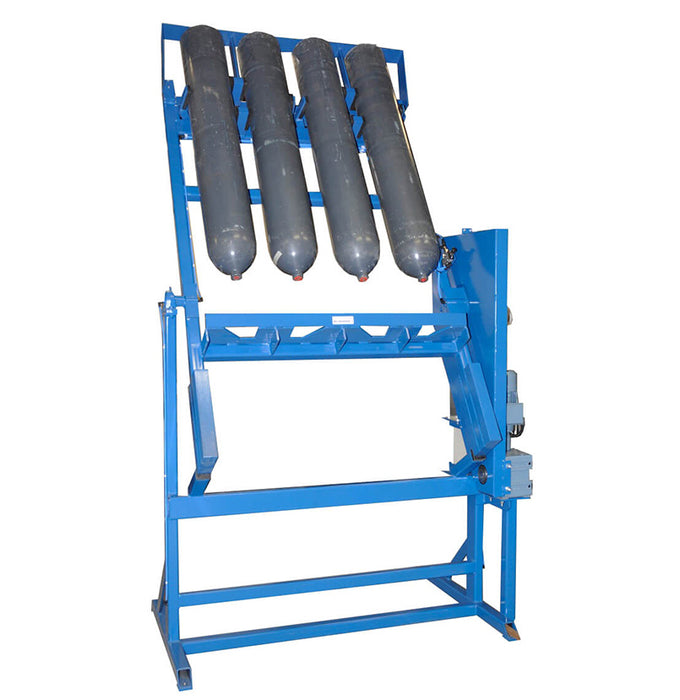

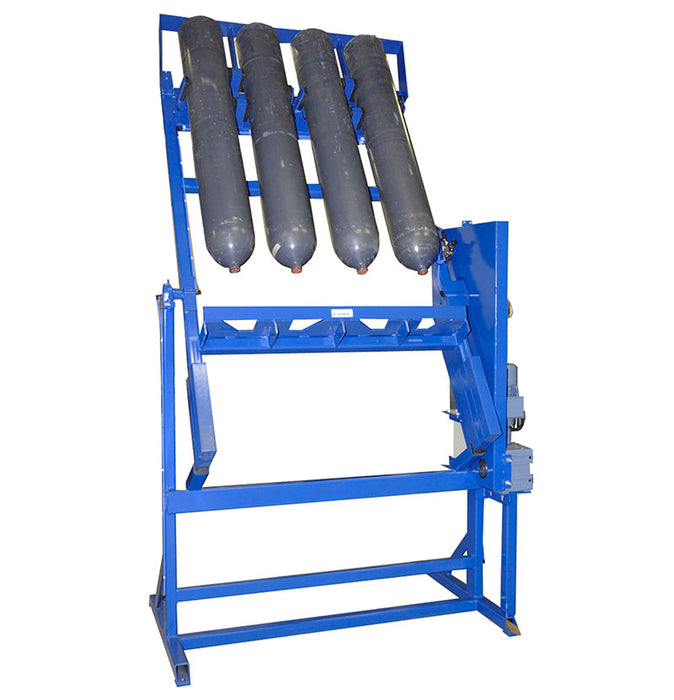

- The cylinders are turned 135° to “cleaning position”.
- Capacity 4 gas cylinders.
- Diameter: 140-235 mm and
- Height 700-1700 mm.
