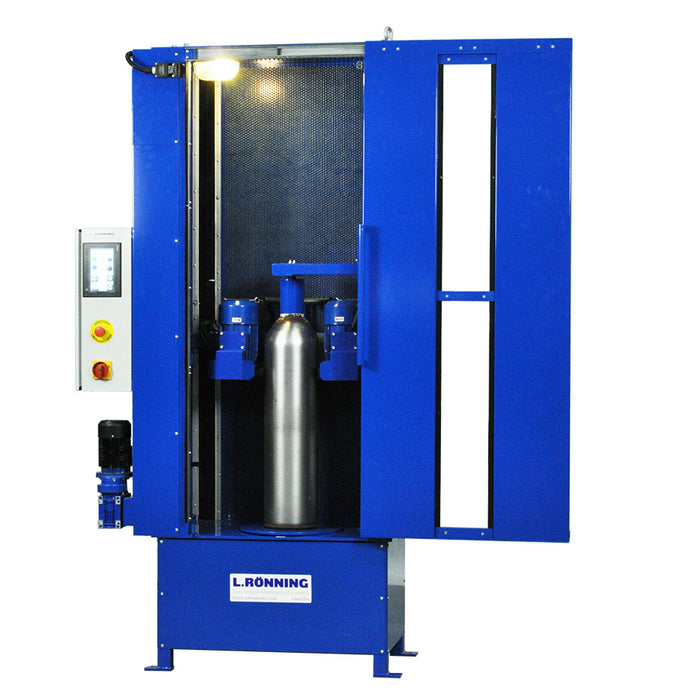

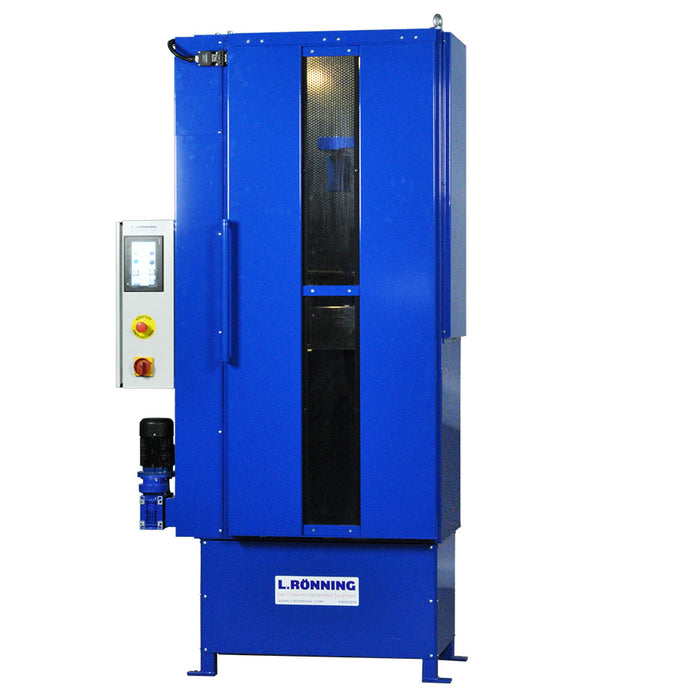

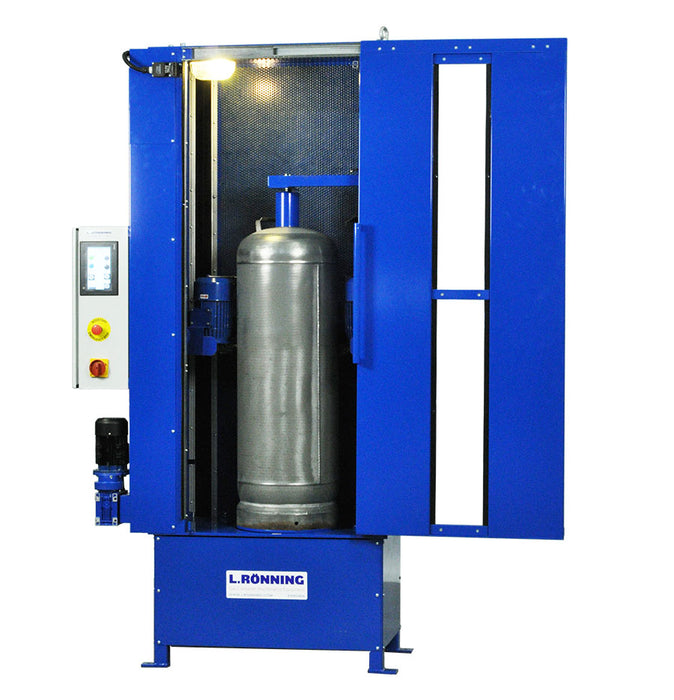

External cleaning & painting machine for gas cylinders – M148-152-001
The cylinder is cleaned by means of 2 rotating steel wire brushes.
The cleaning cycle is fully automatic and will also clean the shoulder on a seamless cylinder.
After the cleaning cycle, it is possible to paint the cylinder.
- Any pit is NOT required. Height from the floor to the rotating disc is 500 mm.
- The machine is designed to remove rust, dirt, and loose paint.
- Controlled by frequency converter and touch panel.
- Brush arm travel speed is adjustable.
- Sliding door.
- Cabinet, walls, and door of sound-absorbing material.
- To be connected to a dust extraction unit such as M148-165.
- Cylinder height: Up to 1350 mm.
- Cylinder diameter: Up to 380 mm.
Spare parts
Circular brush - Steel wire - Standard - M148-154-000
Circular brush - Nylon with abrasive – M148-154-155
Circular brush - Nylon - M148-154-156
Circular brush - Stainless steel wire – M148-154-157
Circular brush – Steel wire - Aggressive - M148-154-159
Motor for steel wire brushes – M148-950-244
Worm gear unit with motor for cylinder rotation - M148-950-465
Drive rubber ring for brush arm travel - M148-950-341
Worm gear unit with motor for brush arm travel - M148-466
Optional fittings
Double roller device for painting - M169-159-001
Cylinder rotating device - M169-106-000
Device for cleaning & painting small cylinders - M148-153-000 / M148-153-002
