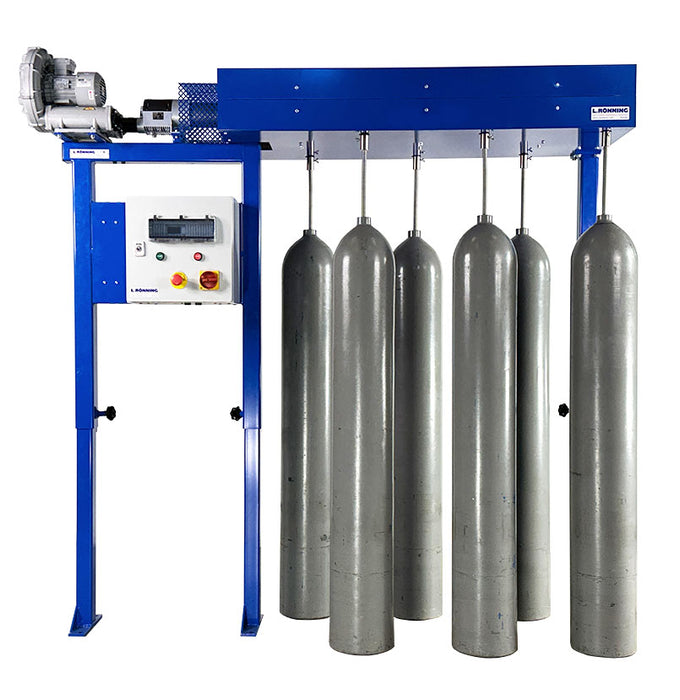

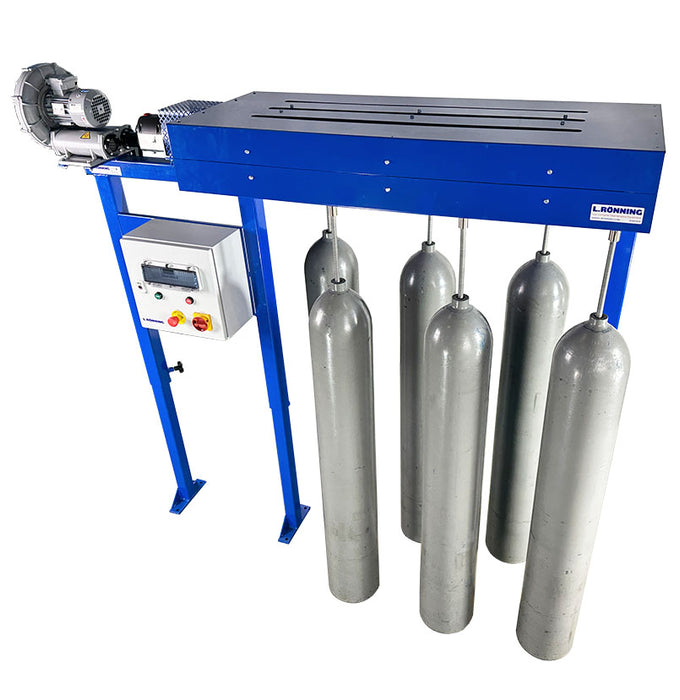

Drying unit compact version - M254-0XX
Product description
Free standing installation.
- electric air-heater and blower

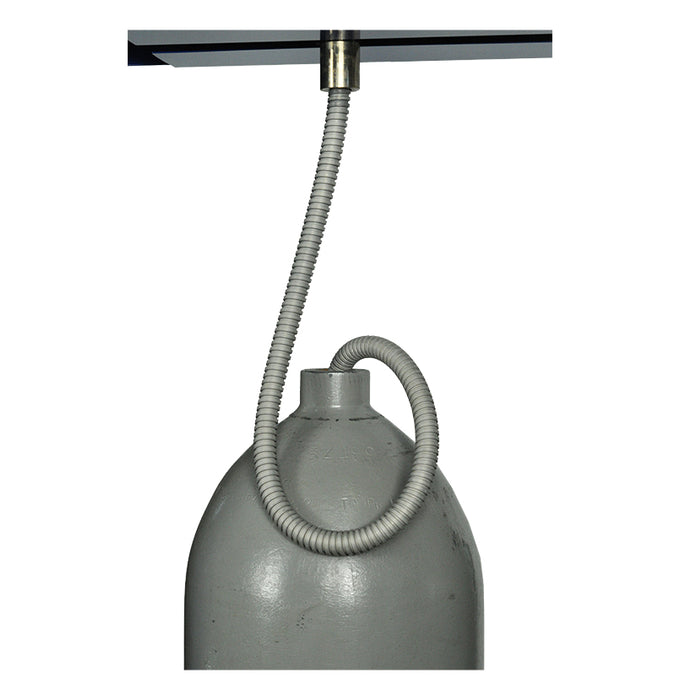

- flexible metal hot air conduits (Ø 17 mm)
- electric control box with timer for drying time
- manifold insulated with mineral wool and covered with steel sheet

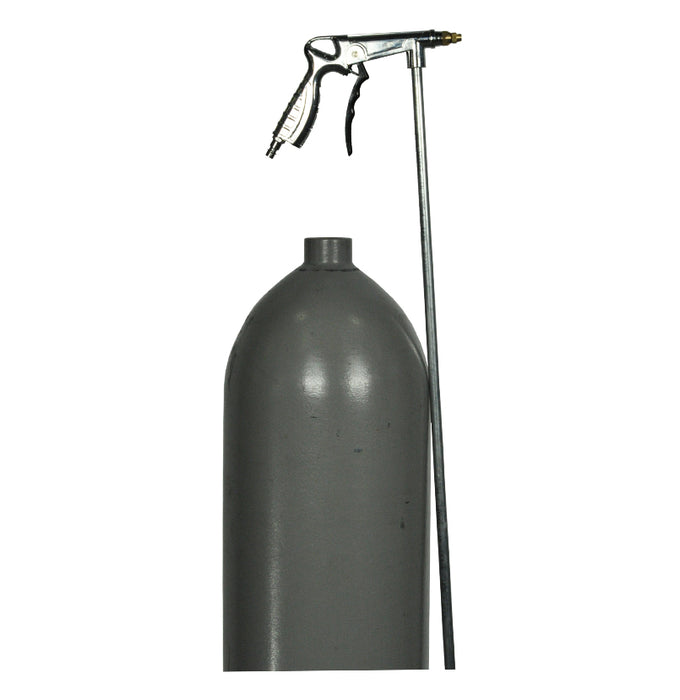

- ejector to remove residual water (M254-258-xxx)
The drying time can be reduced considerable with dry nitrogen is connected to the blower.
Estimated drying capacity for 50L cylinders: 12-24 cylinders / hour (depending upon ambient conditions such as atmospheric humidity, cylinder internal condition, cylinder size, water temperature and room temperature).
Product options
Alternatives:
The following options are available
M254-028-041 Ø280 / 1550 mm / 4 cylinders
M254-028-061 Ø280 / 1550 mm / 6 cylinders
M254-028-062 Ø280 / 1800 mm / 6 cylinders
M254-028-081 Ø280 / 1550 mm / 8 cylinders
M254-028-082 Ø280 / 1800 mm / 8 cylinders
M254-040-041 Ø400 / 1550 mm / 4 cylinders
M254-040-061 Ø400 / 1550 mm / 6 cylinders
M254-040-062 Ø400 / 1800 mm / 6 cylinders
M254-040-081 Ø400 / 1550 mm / 8 cylinders
M254-040-082 Ø400 / 1800 mm / 8 cylinders
M254-040-083 Ø400 / 2100 mm / 8 cylinders
At request for quotation please specify option.
