Cylinder painting machine - M169-000-001

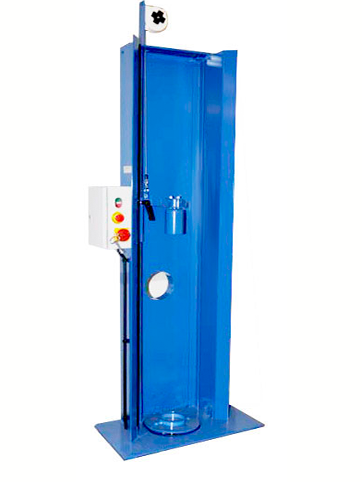

CYLINDER PAINTING MACHINE
Safe and quick method to manually paint a gas cylinder. The gas cylinder is placed on a turning disc and the cylinder is being painted as the cylinder is rotating.
- Walls 3 sides, front open.
- Worm gear motor for cylinder turning.
- Cylinder support with spring balancer

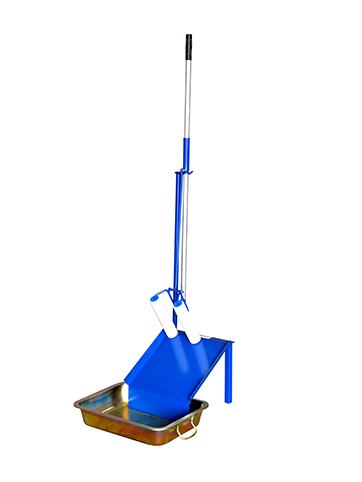

- M169-159-001 paint-trough and tools for painting.
- Start and stop push button.
- Manual painting by means of rollers
- Connection for extraction at the rear
- Capacity 1 gas cylinder.
- Typical process time for one 50L cylinder from loaded to fully painted 1 minutes.
- Cylinder diameter: 120 - 270 mm.
- Cylinder length: 0 -1650 mm.
