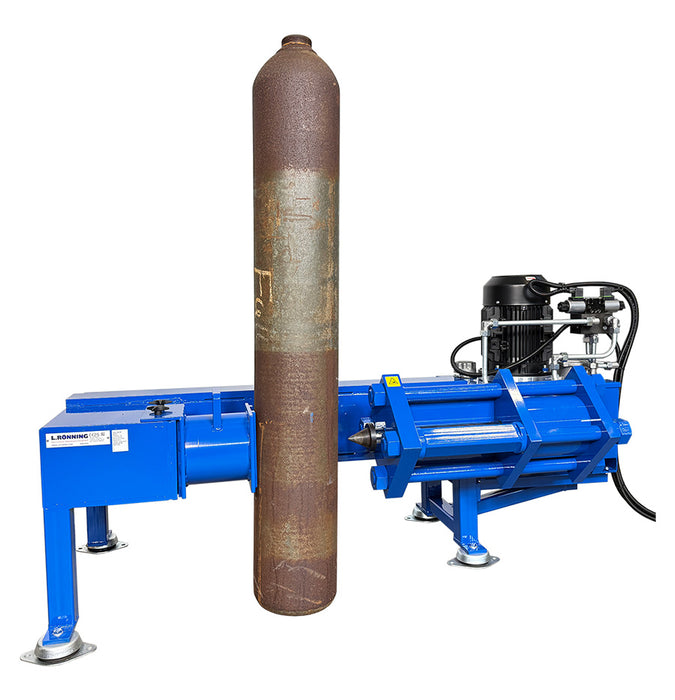

Machine for pressing holes in seamless gas cylinders - M267-000-001
Scrapping machine for destroying seamless gas cylinders.

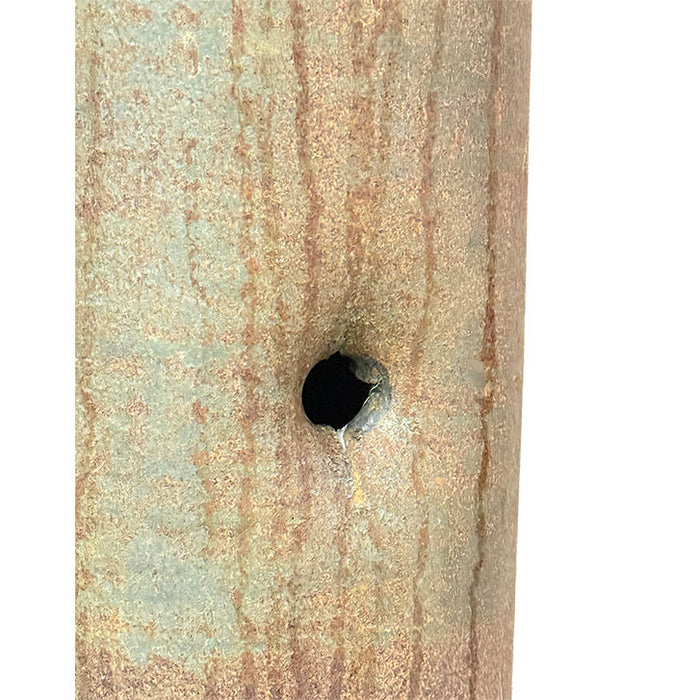

The gas cylinder will be punctured with one hole NEAR THE BOTTOM to make reuse of a scrapped cylinder impossible.
The gas cylinder is placed direct onto the floor, no need to lift the gas cylinder.
Scoop of supply:
- heavy dute machine frame designed for 43 metric ton
- hydraulic gear pump with electric motor for piercing
- oil tank, overflow-valves, control valve and tubing
- 1 piston with hardned conical press tip
- spacer for small cylinders
- electric control panel
-protective grating covering 4 sides, door with interlocking device
Technical specification:
- Capacity: 1 gas cylinder.
- Estimated cycle time: 30 sec.
- Cylinder diameter: 140–430 mm.
- Press holes: 1 hole Ø 30–40 mm, near the bottom.
