Inverter for gas cylinders - Ø235mm/H1700mm - M239-000-XXX

  • Unit price per


Product description

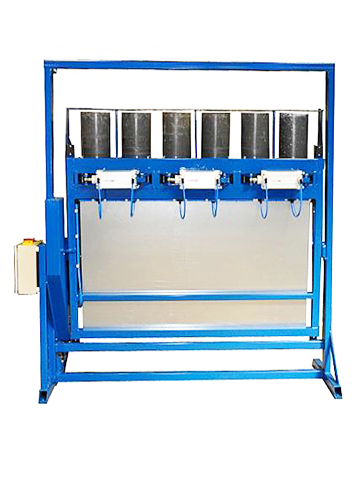

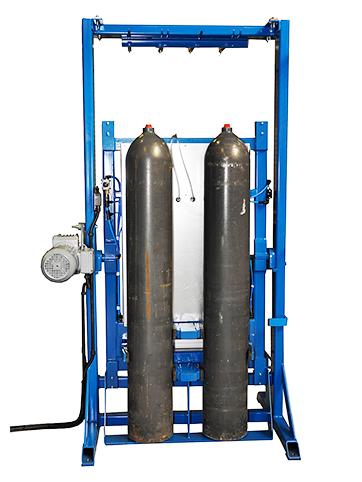

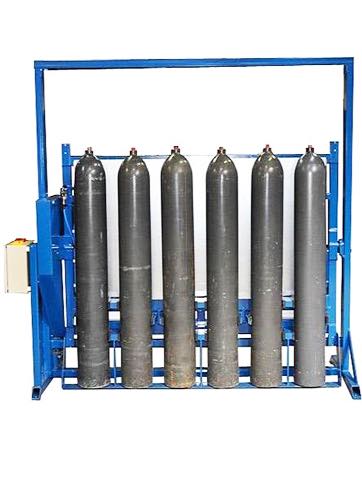

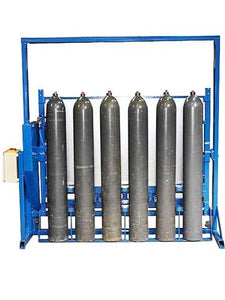

INVERTER FOR GAS CYLINDERS - Ø235mm/H1700mm

To be used to upend gas cylinders, for example to remove water.

- The cylinders are clamped in a frame by compressed-air cylinders.
- A worm gear motor upends the cylinders through a chain gear.
- The inverter is equipped with a 3 side protective grating.

  • Cylinder height: 1700 mm.
  • Cylinder diameter: Ø140-235 mm.
Product options

Alternatives:

The following options are available:

Inverter for 2 gas cylinders - M239-000-002.
Inverter for 4 gas cylinders - M239-000-004.
Inverter for 6 gas cylinders - M239-000-006.
Inverter for 8 gas cylinders - M239-000-008.
Inverter for 10 gas cylinders - M239-000-010.

At request for quotation please specify number of gas cylinder.

Spare parts

Rubber pad for clamp arm - M239-950-551

Optional fittings

Guarding for inverter - M239-452-806 / 804

Removable insert – M239-364-105

Inspection door & catwalk for cylinder inverter - M239-754-000

Mechanical safety stop barrier - M239-720-006

Pneumatic lift device – M239-247-000

Equipment for steam drying - M254-399-105
