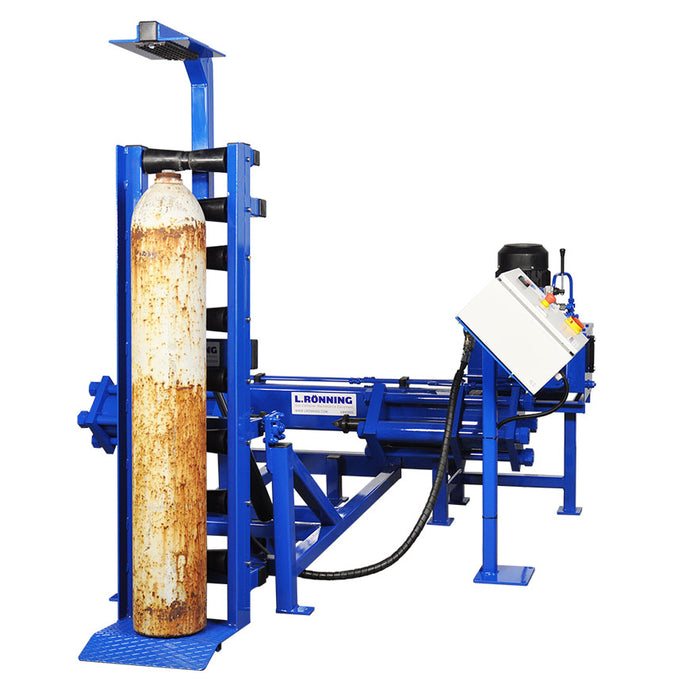

Scrapping machine for seamless gas cylinders - M267-872-001
Scrapping machine for destroying condemned seamless gas cylinders.
The gas cylinder to be scrapped is placed in a cradle and is turned into position by means of a hydraulic cylinder.

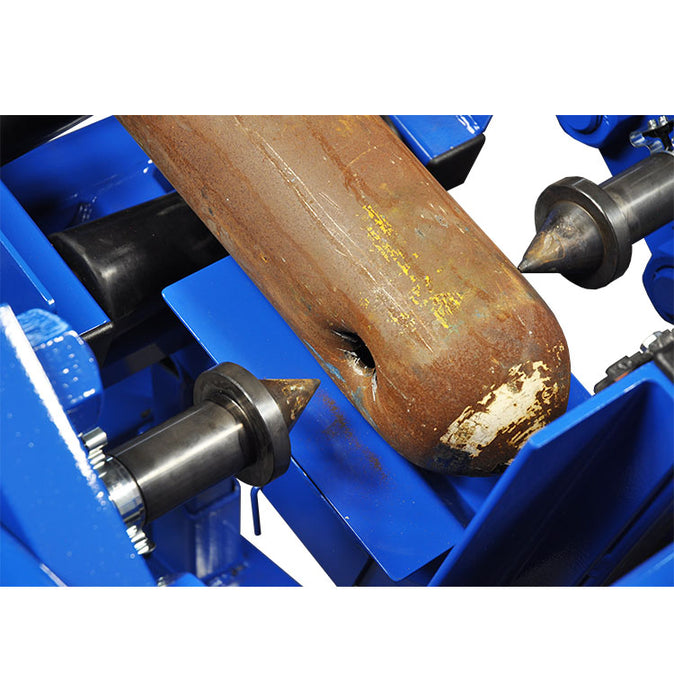

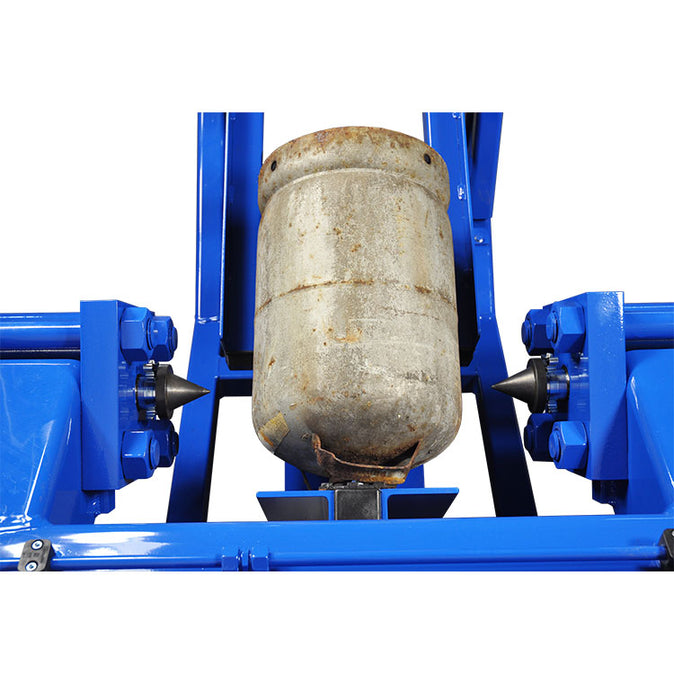

- The gas cylinder will be pierced in 2 places near the shoulder.
- Cradle with hydraulic upending cylinder.
- Electric operated hydraulic gear pump.
- 2 piercing pistons.
- Protective grating covering 4 sides, door with interlocking device.
- Control panel.
- Capacity: 1 gas cylinder.
- Estimated cycle time: 50 sec.
- Cylinder diameter: 140–380 mm.
- Cylinder height: up to 1700 mm.
- Press holes: 2 nos. Ø 30–40 mm.
