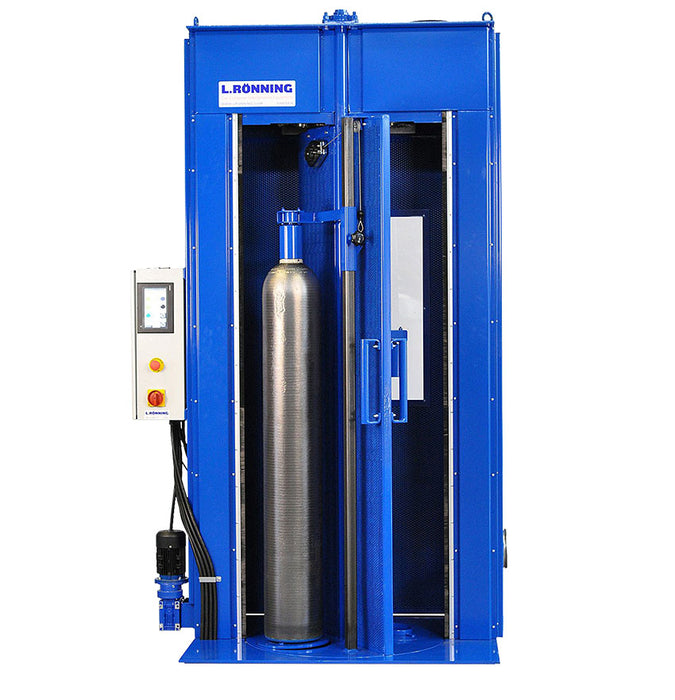

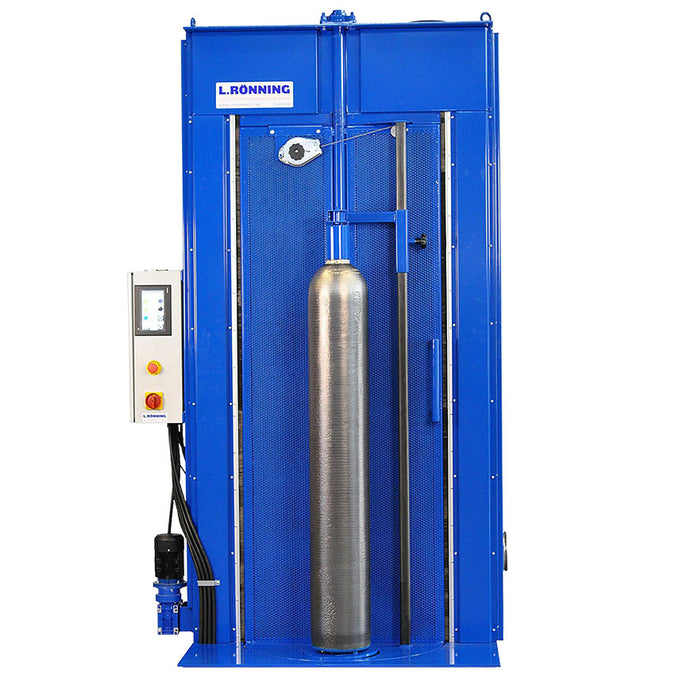

Revolving External Cleaning & Painting Machine for gas cylinders - M148-169-109
Two position cabinet. One cylinder can be cleaned at the same time as a cylinder is being painted.
The spinning cylinder is cleaned by means of 2 rotating steel wire brushes.
The cleaning cycle is fully automatic and will also clean the shoulder on a seamless cylinder.
After the cleaning cycle, the spinning cylinder can be painted manually by means of rollers.
- The machine is designed to remove rust, dirt, and loose paint.
- Controlled by frequency converter and touch panel.
- Brush arm travel speed is adjustable.
- Easy handling, cylinder at floor level, installation requires a pit.
- Cabinet, walls, and door of sound-absorbing material.
- Doors to isolate each section.
- To be connected to a dust extraction unit such as M148-165.
Cylinder diameter: Up to 270 mm.
Cylinder height: Up to 1800 mm.
Product video
Spare parts
Circular brush - Steel wire - Standard - M148-154-000
Circular brush - Nylon with abrasive – M148-154-155
Circular brush - Nylon - M148-154-156
Circular brush - Stainless steel wire – M148-154-157
Circular brush – Steel wire - Aggressive - M148-154-159
Motor for steel wire brushes – M148-950-244
Worm gear unit with motor for cylinder rotation - M148-950-465
Drive rubber ring for brush arm travel - M148-950-341
Worm gear unit with motor for brush arm travel - M148-466
