Stamp holder - Marking tool – M132-000

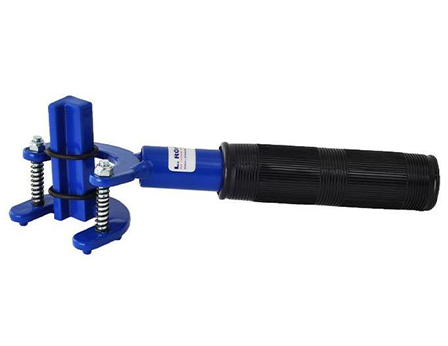

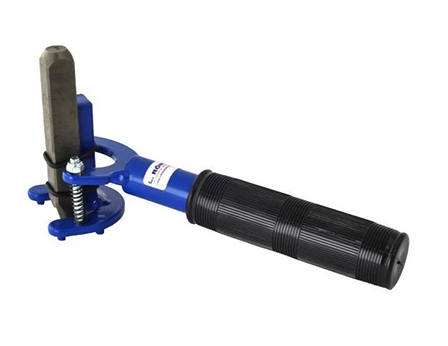

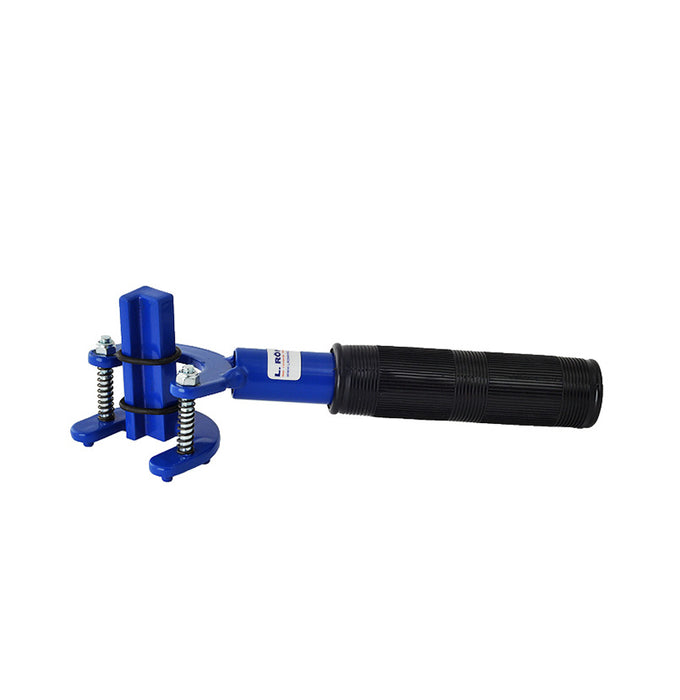

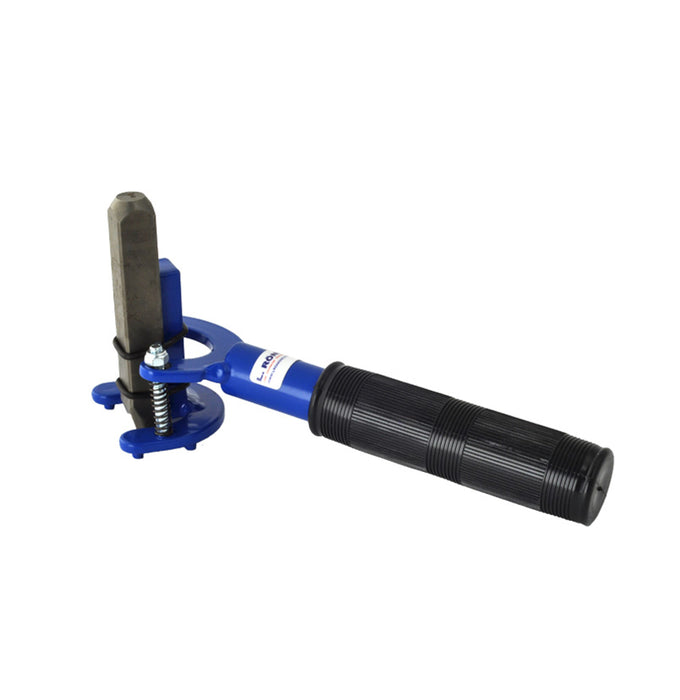

STAMP HOLDER - MARKING TOOL.

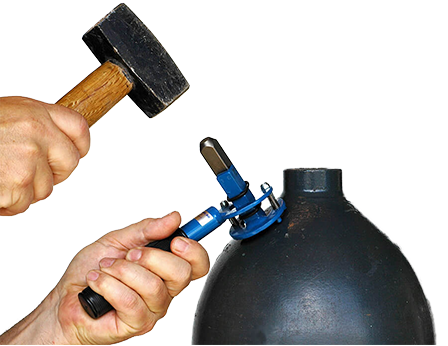

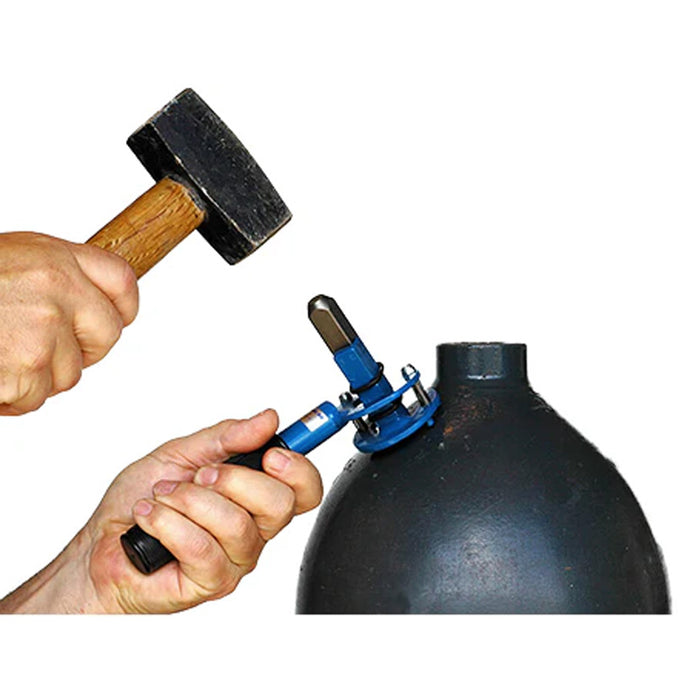

Will automatically hold the punch perpendicular to the surface of the gas cylinder. This results in a better impression. For example, an ”8” will never become a ”3”.
The hand is protected the whole time against blows and vibration.
The fingers are always at least 5 cm from the punch.
As the fingers are always far from the punch, there is no risk in using greater force and one hammer blow is sufficient even for punches with 2 digits, such as 12 for the month and 90 for the year. This means that no more than three hammer blows are required for each cylinder that is pressure tested.
Accidental turning or movement of the handle at the instant before the impact of the hammer is unimportant - the punch does not move.
- Supplied in set of 3 units.
- The stamp holder is available for the following stamp sizes: 8x8, 10x10, 12x12, 14x14 or 16x16 mm For quadrangular punches only.
- Minimum lenght of stamp 75 mm.
